X976F - s-lhd-sop12

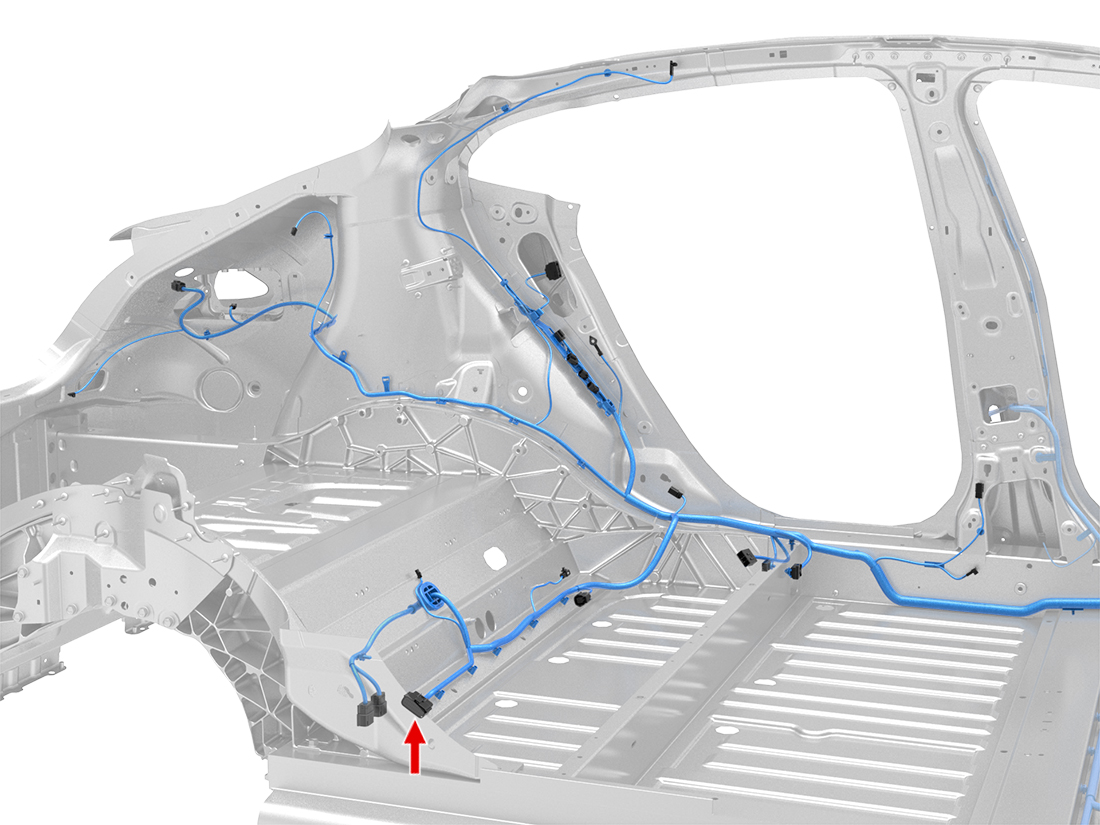

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | |||||||||
| 2 | OG | 0.35 | TESLA | MAT-120-240 | X290 | 1 | |||
| 3 | BN/WH | 0.35 | TESLA | MAT-120-240 | X776 | 11 | |||
| 4 | RD/WH | 0.35 | TESLA | MAT-120-240 | X778 | 2 | |||
| 5 | GN/WH | 0.35 | TESLA | MAT-120-240 | X778 | 10 | |||
| 6 | VT | 0.35 | TESLA | MAT-120-240 | X045 | 1 | |||
| 7 | WH/BK | 0.35 | TESLA | MAT-120-240 | X049 | 5 | |||
| 8 | RD/GY | 0.35 | TESLA | MAT-120-240 | X035 | 4 | |||
| 9 | RD/YE | 0.50 | TESLA | MAT-120-240 | X036 | 11 | |||
| 10 | BU/WH | 0.35 | TESLA | MAT-120-240 | X049 | 8 | |||
| 11 | |||||||||
| 12 | |||||||||
| 13 | BN | 0.35 | TESLA | MAT-120-240 | X776 | 22 | |||
| 14 | RD | 0.35 | TESLA | MAT-120-240 | X778 | 13 | |||
| 15 | GN | 0.35 | TESLA | MAT-120-240 | X778 | 21 | |||
| 16 | WH | 0.35 | TESLA | MAT-120-240 | X045 | 2 | |||
| 17 | GN | 0.35 | TESLA | MAT-120-240 | X049 | 6 | |||
| 18 | GY | 0.50 | TESLA | MAT-120-240 | X035 | 1 | |||
| 19 | YE/WH | 0.50 | TESLA | MAT-120-240 | X953M | 11 | |||
| 20 | BU | 0.35 | TESLA | MAT-120-240 | X049 | 7 | |||
