X987F - s-lhd-sop12

Tesla Part Number

1042612-03-A

Connector

SUMITOMO 6098-6102

Color

GY

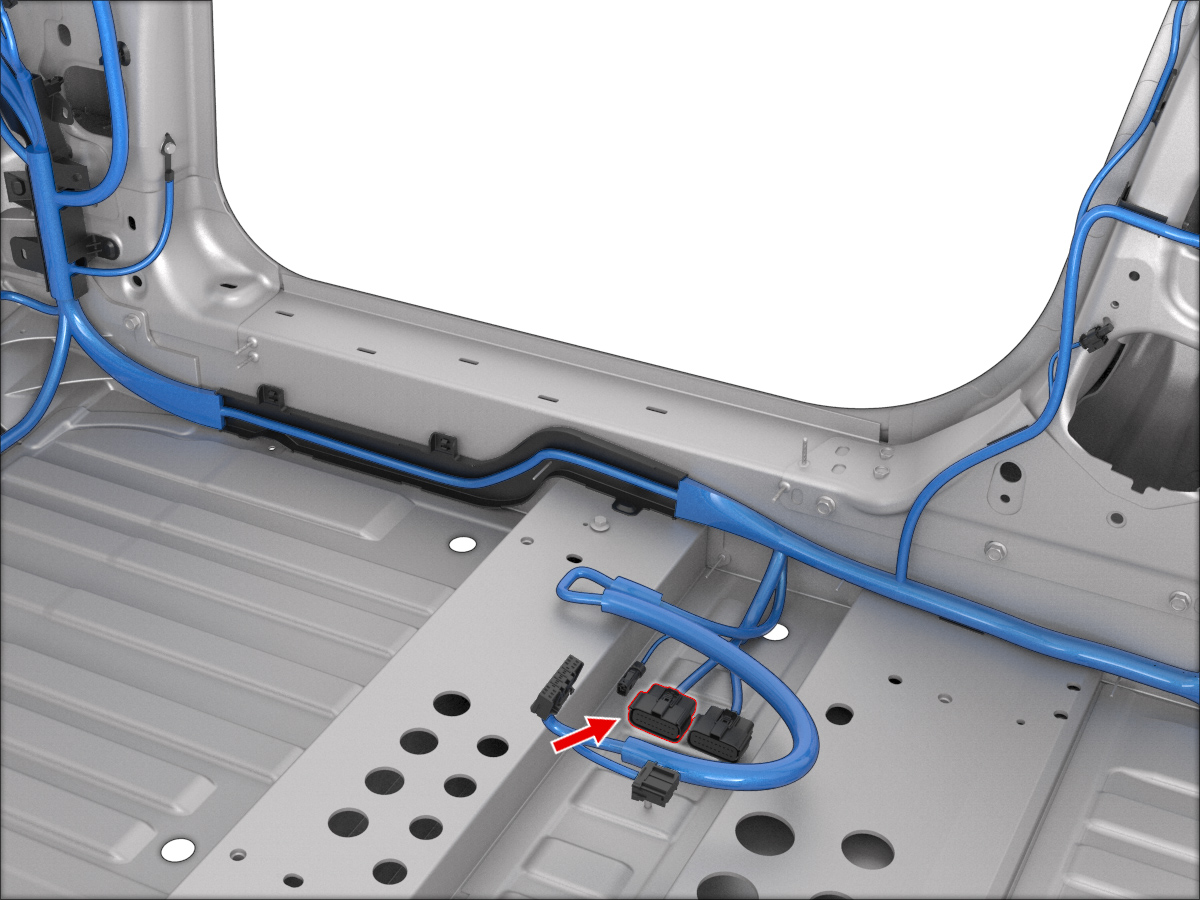

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8240-0215	1.5x0.64F	RD/BU	0.50			X130B	14
2	SUMITOMO	8100-3625	0.64x0.64F	OG	0.50			X931M	2
3	SUMITOMO	8100-3625	0.64x0.64F	GY	0.50			X931M	3
4	SUMITOMO	8100-3625	0.64x0.64F	BU/WH	0.50			X931M	9
5	SUMITOMO	8100-3625	0.64x0.64F	BU	0.50			X931M	10
6	SUMITOMO	8100-3625	0.64x0.64F	BN/WH	0.35			X774	9
7	SUMITOMO	8240-0215	1.5x0.64F	GN/WH	0.50			X931M	12
8
9	SUMITOMO	8100-3625	0.64x0.64F	GN	0.50			X931M	4
10	SUMITOMO	8100-3625	0.64x0.64F	BK/VT	0.50			X931M	11
11	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X774	20
12	SUMITOMO	8240-0215	1.5x0.64F	WH	0.35			X946M	4
