X025 - s-lhd-sop13

Tesla Part Number

1015222-00-A

Connector

JAE MX34032SF1

Color

GY

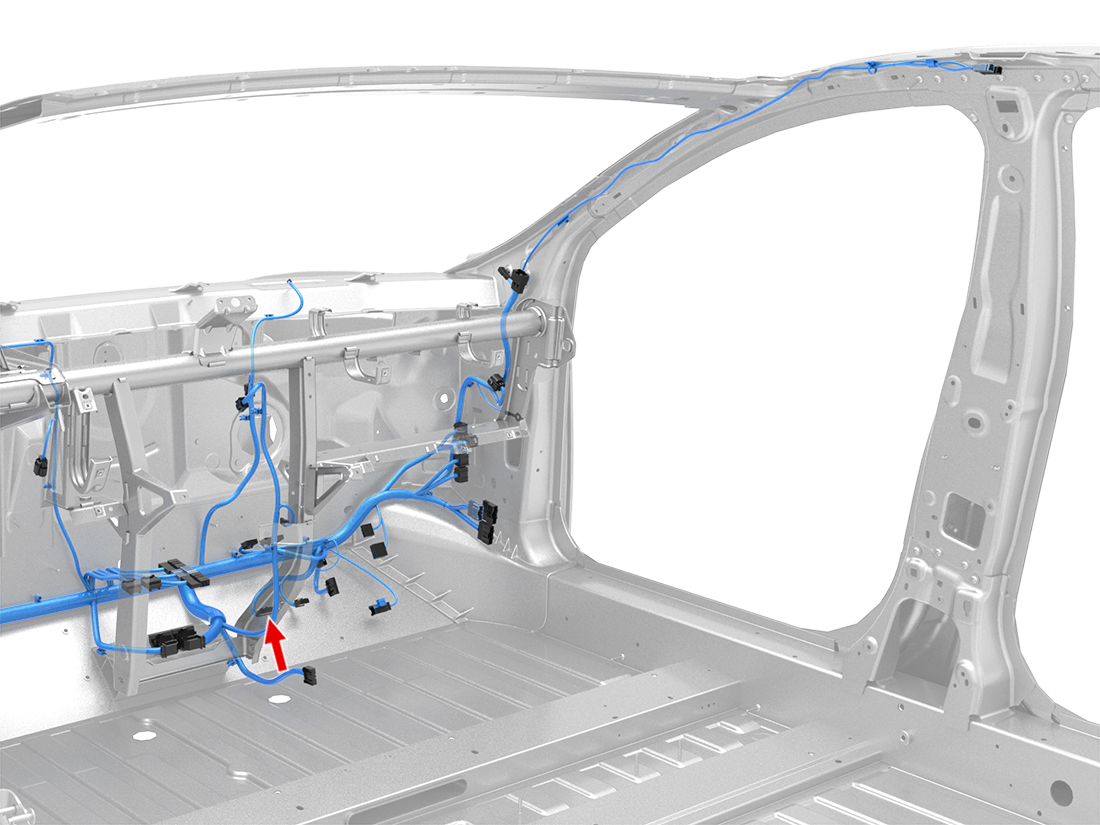

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	JAE	M34S75C4F1	0.8x0.64F	GN	0.35			X775	10
2	JAE	M34S75C4F1	0.8x0.64F	YE/WH	0.35
3	JAE	M34S75C4F1	0.8x0.64F	WH/BK	0.35			X948M	5
4	JAE	M34S75C4F1	0.8x0.64F	BU/WH	0.35			X944M	17
5	JAE	M34S75C4F1	0.8x0.64F	OG	0.35			X943M	17
6	JAE	M34S75C4F1	0.8x0.64F	WH/BU	0.35			X988M	22
7
8	JAE	M34S75C4F1	0.8x0.64F	VT/WH	0.35
9
10
11
12	JAE	M34S75C4F1	0.8x0.64F	BN	0.35			X988M	12
13
14	JAE	M34S75C4F1	0.8x0.64F	GY	0.35			X948M	6
15
16	JAE	M34S75C4F2	0.8x0.64F	VT	0.75			X955M	20
17	JAE	M34S75C4F1	0.8x0.64F	GN/WH	0.35			X775	21
18
19	JAE	M34S75C4F1	0.8x0.64F	GY/WH	0.35			X988M	13
20
21	JAE	M34S75C4F1	0.8x0.64F	BU	0.35			X988M	23
22	JAE	M34S75C4F2	0.8x0.64F	RD/YE	0.50			X954M	2
23
24	JAE	M34S75C4F1	0.8x0.64F	YE	0.35			X988M	10
25
26
27
28
29	JAE	M34S75C4F1	0.8x0.64F	GN	0.35			X578	15
30
31
32	JAE	M34S75C4F2	0.8x0.64F	RD/GY	0.75			X955M	12
