X030 - s-lhd-sop13

Tesla Part Number
1015153-00-A
Connector
DELPHI 12052641
Color
BK

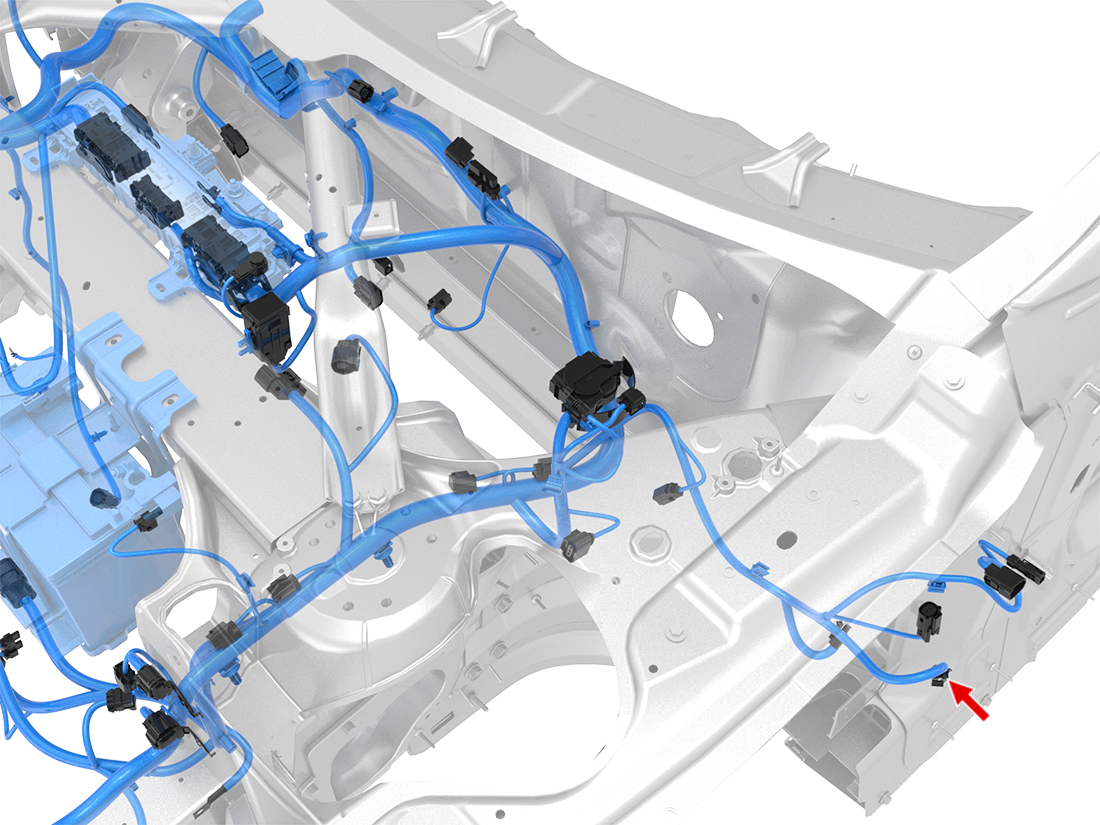

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
ADELPHI120842001.5x0.6FSRD/BK0.50DELPHI15324974X955F11
BDELPHI120842001.5x0.6FSBK0.50DELPHI15324974G5001
