X036 - s-lhd-sop13

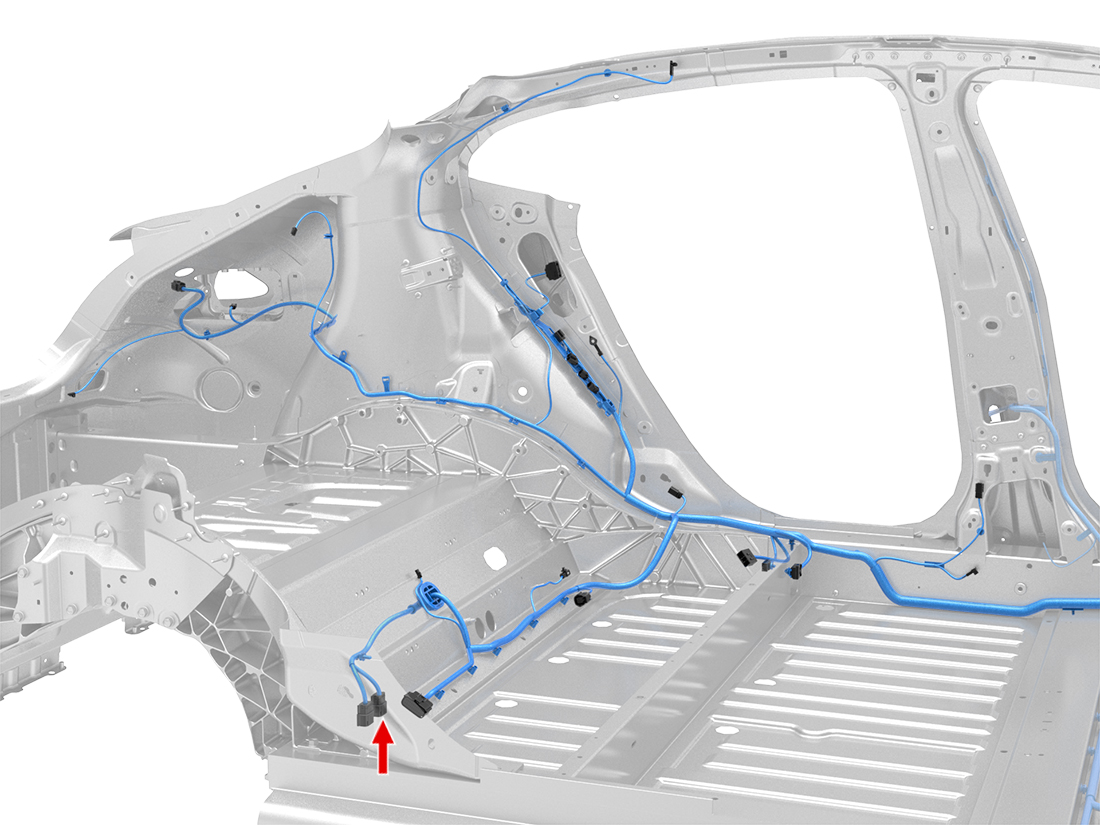

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | |||||||||
| 2 | MOLEX | 33012-3004 | 1.5x0.8F | RD/BU | 0.35 | TESLA | MAT-120-240 | X571 | 1 |
| 3 | |||||||||
| 4 | |||||||||
| 5 | MOLEX | 33012-3002 | 1.5x0.8F | GN | 0.75 | TESLA | MAT-120-240 | ||
| 6 | MOLEX | 33012-3004 | 1.5x0.8F | WH | 0.35 | TESLA | MAT-120-240 | X571 | 3 |
| 7 | MOLEX | 33012-3004 | 1.5x0.8F | YE/WH | 0.35 | TESLA | MAT-120-240 | ||
| 8 | |||||||||
| 9 | MOLEX | 33012-3004 | 1.5x0.8F | RD | 0.35 | TESLA | MAT-120-240 | X778 | 12 |
| 10 | MOLEX | 33012-3004 | 1.5x0.8F | RD/WH | 0.35 | TESLA | MAT-120-240 | X778 | 1 |
| 11 | MOLEX | 33012-3004 | 1.5x0.8F | RD/YE | 0.50 | TESLA | MAT-120-240 | X976F | 9 |
| 12 | MOLEX | 33012-3004 | 1.5x0.8F | BK | 0.50 | TESLA | MAT-120-240 | G720 | 1 |
