X064 - s-lhd-sop13

Tesla Part Number
1015313-00-B
Connector
SUMITOMO 6189-7757
Color
GY

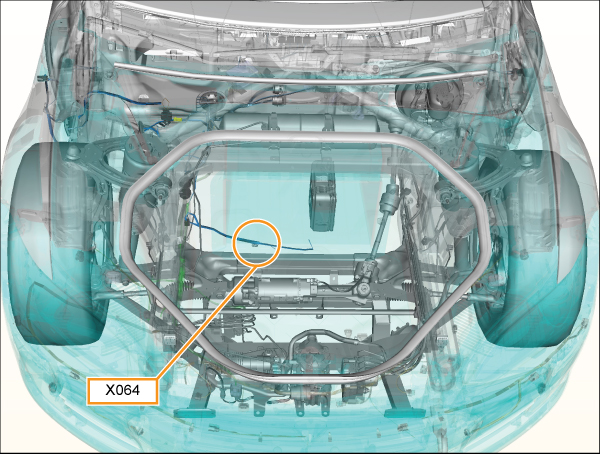

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1SUMITOMO8240-02642.3x0.64FSRD/BK1.00SUMITOMO7165-0473X5638
2SUMITOMO8240-02642.3x0.64FSBK1.00SUMITOMO7165-0473G5001
3SUMITOMO8240-02632.3x0.64FSGY/WH0.35SUMITOMO7165-0474X05114
4SUMITOMO8240-02632.3x0.64FSGN/WH0.35SUMITOMO7165-0474X0514
