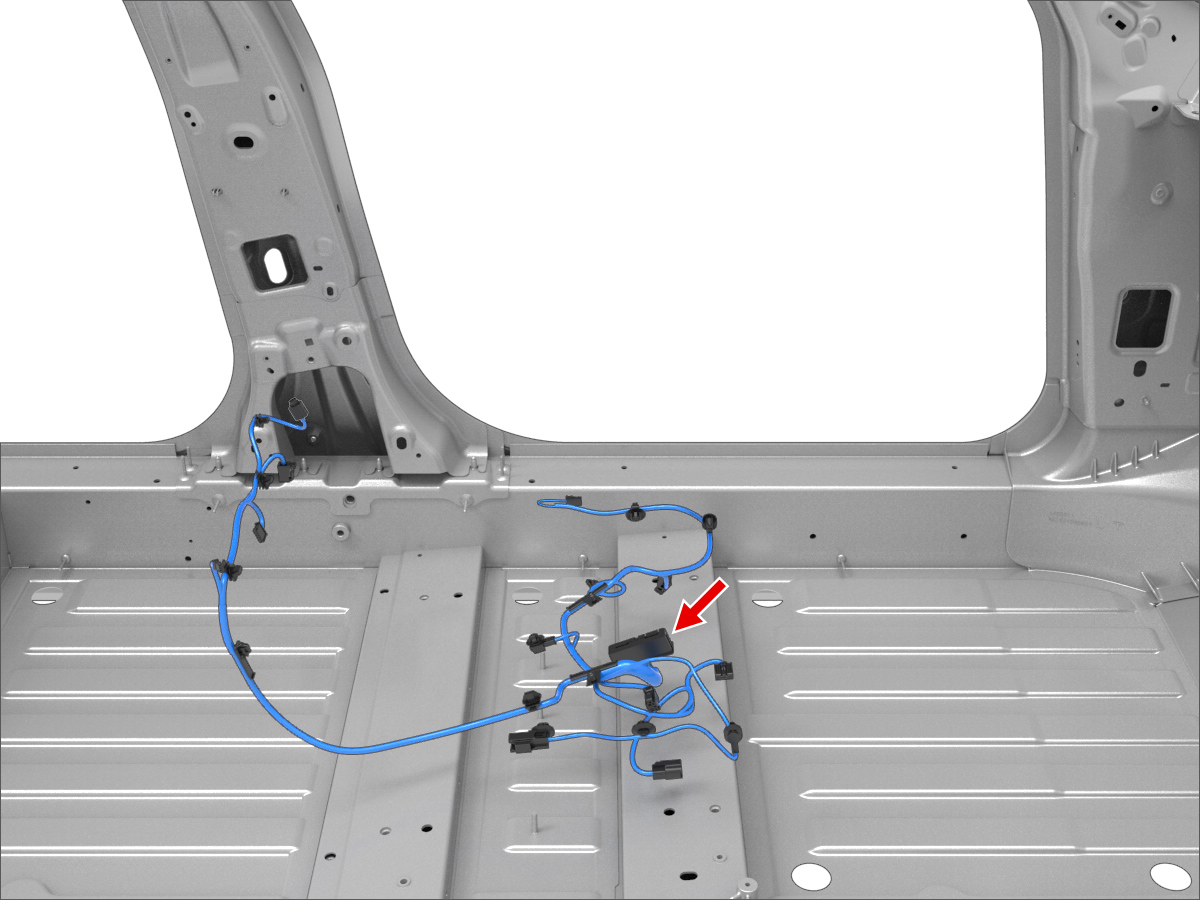

X1002 - s-lhd-sop13

Tesla Part Number

1090045-00-A

Connector

SUMITOMO 6098-8119

Color

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Dest. Desg.	Wire Dest. Cavity
1
2
3	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35	X1024	2
4	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35	X1024	1
5	SUMITOMO	8100-3625	0.64x0.64F	OG	0.35	X1021	4
6	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35	X1021	2
7	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35	X1018	2
8	SUMITOMO	8100-3625	0.64x0.64F	BK	0.35	X1018	4
9	SUMITOMO	8240-0215	1.5x0.64F	RD	0.35	X1019	1
10
11
12
13
14
15
16	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35	X215	1
17	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35	X216	2
18	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35	X1010	1
19	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35	X1010	2
20	SUMITOMO	8100-3625	0.64x0.64F	OG	0.35	X1022	1
21	SUMITOMO	8100-3625	0.64x0.64F	BK	0.35	X1022	2
22	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35	X1014	4
23	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35	X1014	2
24
25
26	SUMITOMO	8240-0213	1.5x0.64F	BU	1.00	X1014	1
27	SUMITOMO	8240-0213	1.5x0.64F	GY	1.00	X1014	5
28	SUMITOMO	8240-0215	1.5x0.64F	RD	0.35	X1031	3
29	SUMITOMO	8240-0213	1.5x0.64F	WH	0.75	X1018	1
30	SUMITOMO	8240-0213	1.5x0.64F	GN	0.75	X1018	3
31	SUMITOMO	8240-0215	1.5x0.64F	BK	0.35	X1019	2
32	SUMITOMO	8240-0215	1.5x0.64F	BN	0.35	X1026	2
33	SUMITOMO	8240-0215	1.5x0.64F	VT	0.35	X1026	1
34
35
36
37
38
39
40	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35	X1031	1
41	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35	X1031	2
42	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35	X1019	6
43
44	SUMITOMO	8100-3625	0.64x0.64F	OG	0.35	X1013	2
45	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35	X1013	4
46	SUMITOMO	8240-0213	1.5x0.64F	YE	0.75	X1021	1
47	SUMITOMO	8240-0213	1.5x0.64F	VT	0.75	X1021	3
48	SUMITOMO	8240-0215	1.5x0.64F	BU	0.35	X1031	4
49	SUMITOMO	8240-0213	1.5x0.64F	YE	0.75	X1013	1
50	SUMITOMO	8240-0213	1.5x0.64F	BK	0.75	X1013	3
51
52
