X113 - s-lhd-sop13

Tesla Part Number
1015290-00-A
Connector
MOLEX 34062-0023
Color
BK

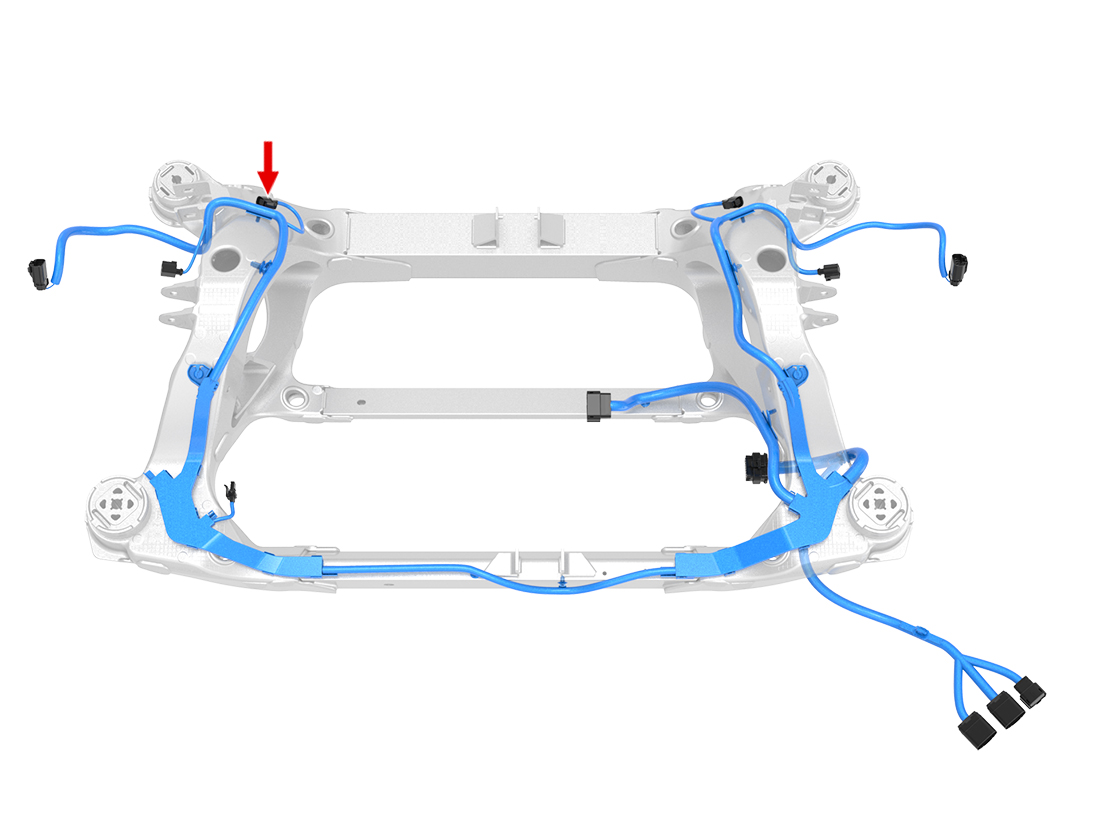

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1MOLEX34083-20021.5X0.6FSGN/WH0.50YAZAKI7158-3030-50X932F9
2MOLEX34083-20021.5X0.6FSGN0.50YAZAKI7158-3030-50X932F10
