X147 - s-lhd-sop13

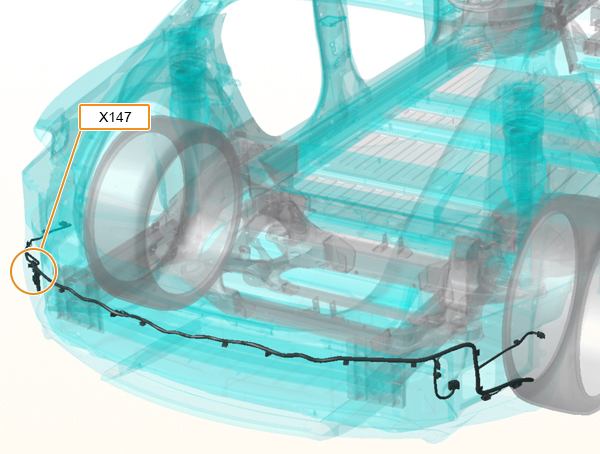

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 5-965906-1 | 0.63x0.63FS | BK | 0.50 | AMP | 967067-1 | ||
| 2 | AMP | 5-965906-1 | 0.63x0.63FS | VT/WH | 0.50 | AMP | 967067-1 | X763 | 5 |
| 3 | AMP | 5-965906-1 | 0.63x0.63FS | VT | 0.50 | AMP | 967067-1 | X763 | 2 |
| 4 | |||||||||
| 5 | |||||||||
| 6 | |||||||||
| 7 | AMP | 5-965906-1 | 0.63x0.63FS | BK | 0.50 | AMP | 967067-1 | ||
| 8 | AMP | 5-965906-1 | 0.63x0.63FS | RD/YE | 0.50 | AMP | 967067-1 | ||
