X184 - s-lhd-sop13

Tesla Part Number
1045248-00-A
Connector
FEP 42511400
Color
BK

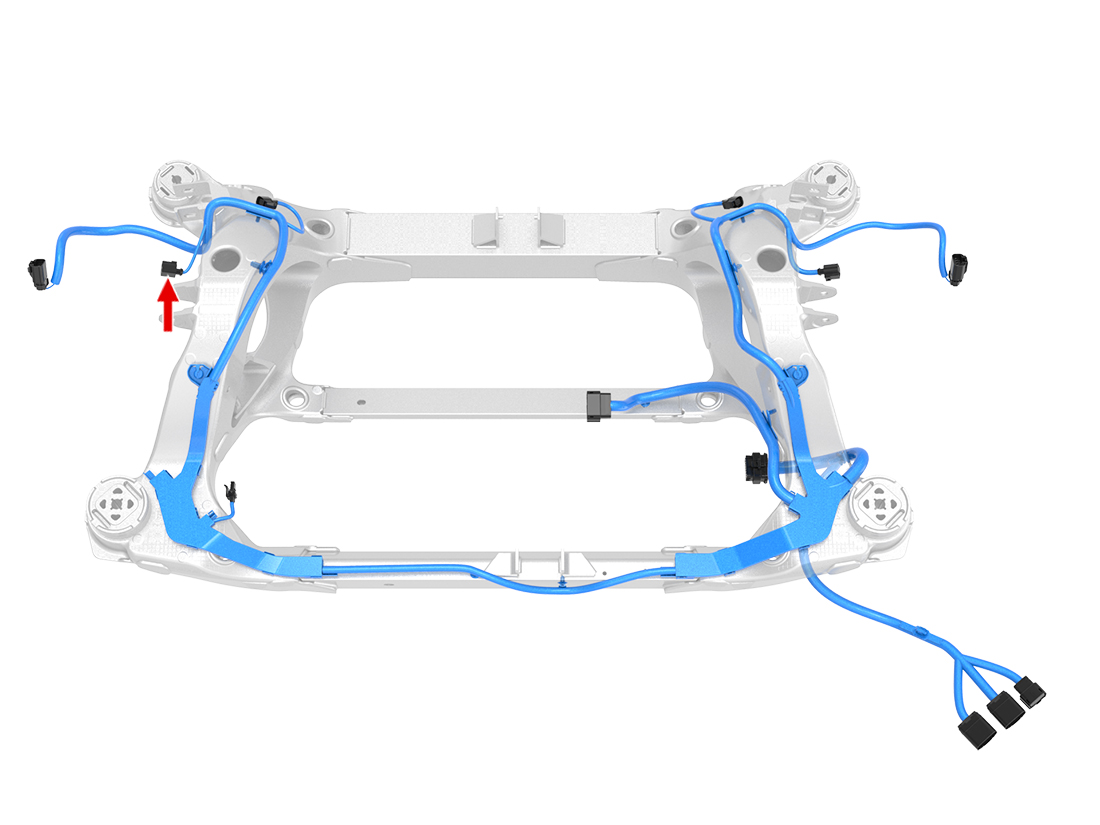

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1AMP1564324-21.5x0.6FSBK0.35X932F4
2AMP1564324-21.5x0.6FSVT0.35X932F3
3AMP1564324-21.5x0.6FSRD/GN0.35X932F2
