X230 - s-lhd-sop13

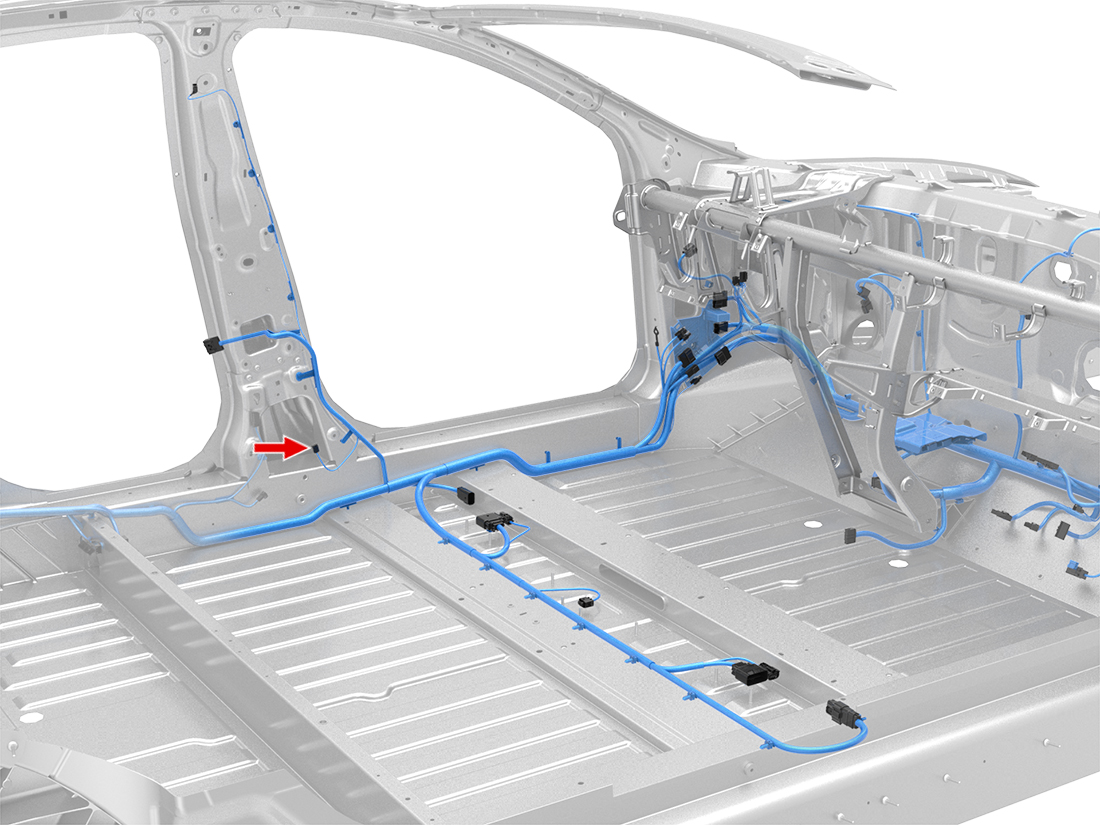

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 1612124-3 | 1.0DF | RD/GN | 0.35 | X201 | 4 | ||
| 2 | AMP | 1612124-3 | 1.0DF | BK/VT | 0.35 | X201 | 3 |
