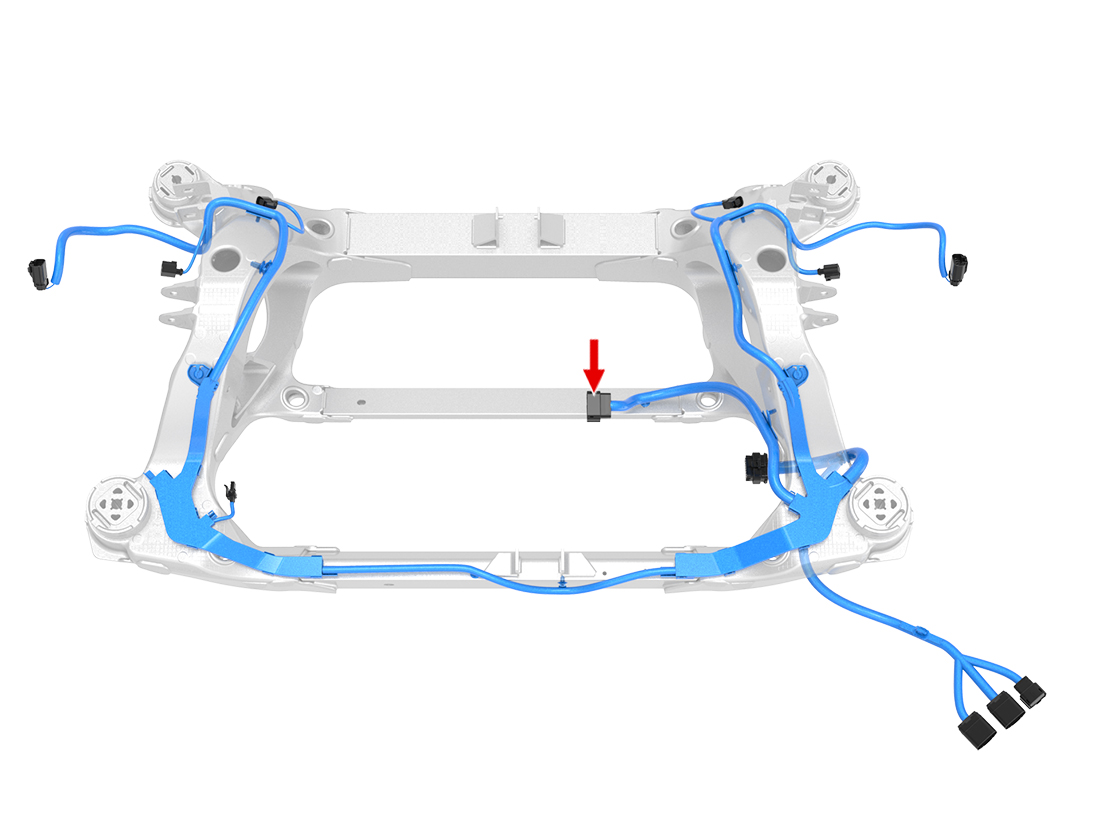

X251 - s-lhd-sop13

Tesla Part Number

1034184-10-A

Connector

MOLEX 33472-2007

Color

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	MOLEX	33001-3006	1.5x0.8F	RD	0.50	TESLA	MAT-120-240	X932F	11
2	MOLEX	33001-3006	1.5x0.8F	RD/WH	0.50	TESLA	MAT-120-240	X932F	1
3	MOLEX	33001-3006	1.5x0.8F	RD/YE	0.50	TESLA	MAT-120-240	X931F	5
4	MOLEX	33001-3006	1.5x0.8F	GY	0.50	TESLA	MAT-120-240	X931F	3
5	MOLEX	33001-3006	1.5x0.8F	OG	0.50	TESLA	MAT-120-240	X931F	2
6	MOLEX	33001-3006	1.5x0.8F	BK/VT	0.50	TESLA	MAT-120-240	X931F	11
7	MOLEX	33001-3006	1.5x0.8F	GN	0.50	TESLA	MAT-120-240	X931F	4
8
9
10	MOLEX	33001-3004	1.5x0.8F	RD/BK	0.75	TESLA	MAT-120-240	X931F	1
11	MOLEX	33001-3006	1.5x0.8F	YE	0.50	TESLA	MAT-120-240	X931F	6
12	MOLEX	33001-3006	1.5x0.8F	BU	0.50	TESLA	MAT-120-240	X931F	10
13	MOLEX	33001-3004	1.5x0.8F	RD/BU	0.75	TESLA	MAT-120-240	X931F	8
14	MOLEX	33001-3006	1.5x0.8F	BU/WH	0.50	TESLA	MAT-120-240	X931F	9
15
16
17	MOLEX	33001-3006	1.5x0.8F	WH	0.50	TESLA	MAT-120-240	X931F	13
18	MOLEX	33001-3004	1.5x0.8F	VT/WH	0.75	TESLA	MAT-120-240	X931F	14
19	MOLEX	33001-3004	1.5x0.8F	BK	0.75	TESLA	MAT-120-240	X931F	7
20	MOLEX	33001-3006	1.5x0.8F	GN/WH	0.50	TESLA	MAT-120-240	X931F	12
