X261 - s-lhd-sop13

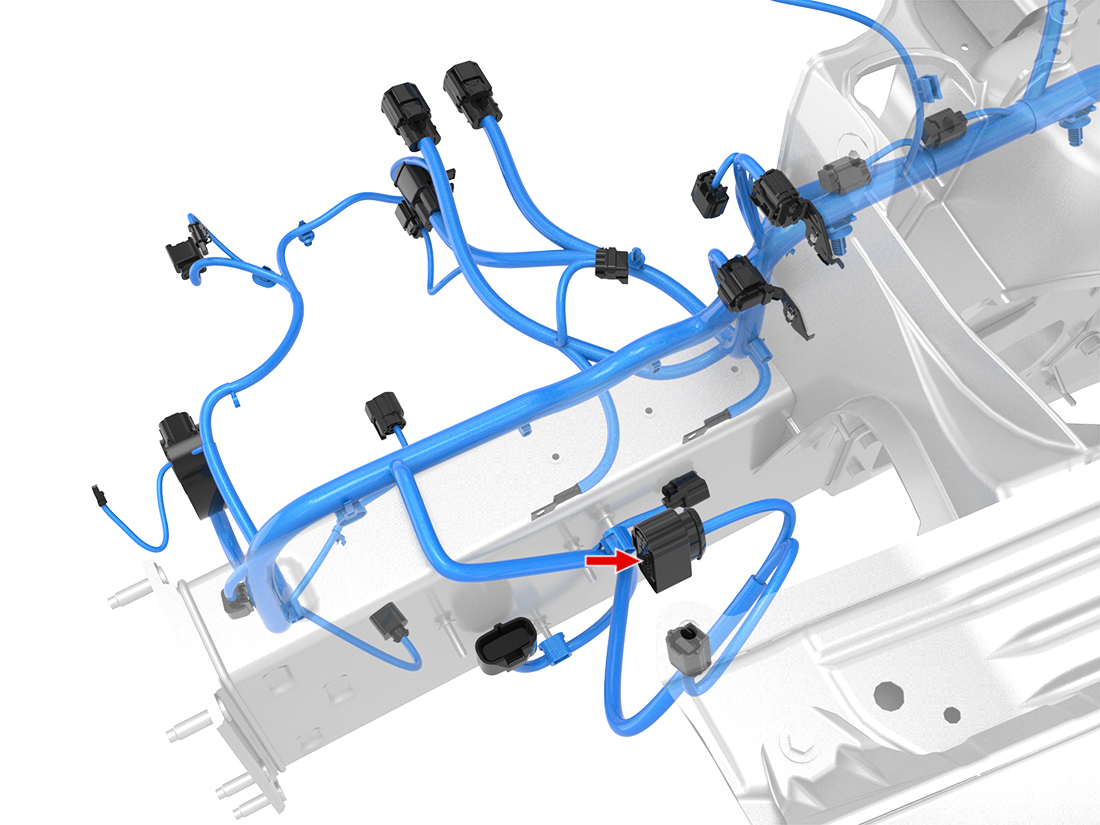

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 969005-2 | 1.6x0.6FS | BU/WH | 0.35 | X953F | 16 | ||
| 2 | |||||||||
| 3 | |||||||||
| 4 | AMP | 969005-2 | 1.6x0.6FS | GY | 0.35 | X020 | 21 | ||
| 5 | |||||||||
| 6 | AMP | 964286-1 | 2.8x0.8FS | RD/BK | 1.00 | AMP | 963294-1 | X026 | 2 |
| 7 | AMP | 964282-2 | 2.8x0.8FS | BN | 0.35 | AMP | 963294-1 | X020 | 7 |
| 8 | AMP | 964286-1 | 2.8x0.8FS | BK | 1.00 | AMP | 963294-1 | ||
| 9 | AMP | 964286-1 | 2.8x0.8FS | BK | 1.00 | AMP | 963294-1 | ||
| 10 | |||||||||
| 11 | |||||||||
| 12 | |||||||||
| 13 | |||||||||
| 14 | |||||||||
