X284 - s-lhd-sop13

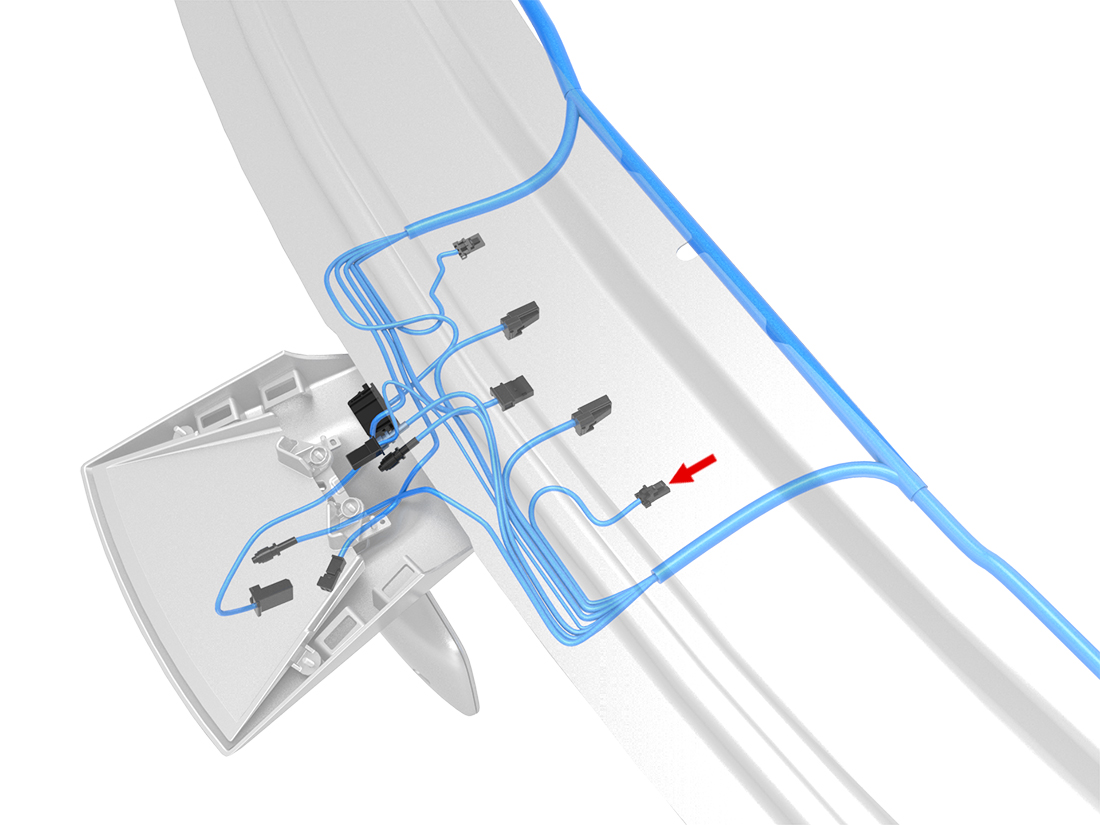

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | MOLEX | 16-02-0086 | 0.64x0.64F | GY | 0.35 | X967F | 13 | ||
| 2 | MOLEX | 16-02-0086 | 0.64x0.64F | BK | 0.35 | ||||
| 3 | MOLEX | 16-02-0086 | 0.64x0.64F | WH | 0.35 | X967F | 12 |
