X379 - s-lhd-sop13

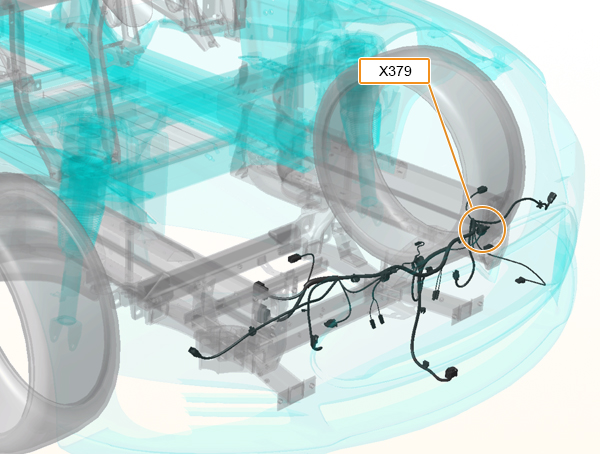

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | YAZAKI | 7116-4102-02 | 1.5x0.8FS | RD/YE | 0.50 | QSR | E1644-06 | X960F | 13 |
| 2 | YAZAKI | 7116-4102-02 | 1.5x0.8FS | BK | 0.50 | QSR | E1644-06 |
