X393 - s-lhd-sop13

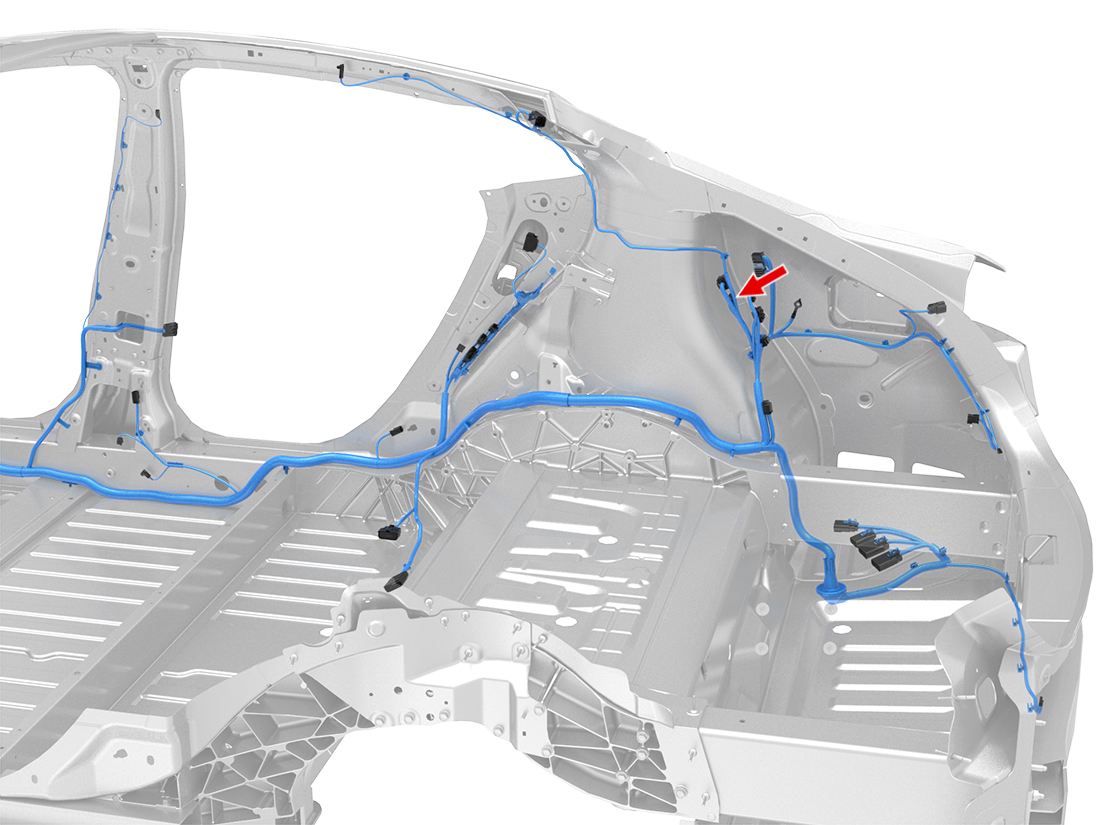

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | JAE | M34S75C4F1 | 0.8x0.64F | VT/WH | 0.35 | X922M | 8 | ||
| 2 | JAE | M34S75C4F1 | 0.8x0.64F | OG/BK | 0.35 | X922M | 6 | ||
| 3 | JAE | M34S75C4F1 | 0.8x0.64F | BN/WH | 0.35 | X774 | 10 | ||
| 4 | JAE | M34S75C4F1 | 0.8x0.64F | BU | 0.35 | X774 | 18 | ||
| 5 | JAE | M34S75C4F1 | 0.8x0.64F | WH/BU | 0.35 | X774 | 7 | ||
| 6 | JAE | M34S75C4F1 | 0.8x0.64F | OG | 0.35 | X922M | 15 | ||
| 7 | JAE | M34S75C4F2 | 0.8x0.64F | RD/GN | 0.50 | X391 | 5 | ||
| 8 | JAE | M34S75C4F2 | 0.8x0.64F | RD/BU | 0.50 | X391 | 6 | ||
| 9 | |||||||||
| 10 | |||||||||
| 11 | JAE | M34S75C4F1 | 0.8x0.64F | WH | 0.35 | X922M | 16 | ||
| 12 | |||||||||
| 13 | JAE | M34S75C4F1 | 0.8x0.64F | BN | 0.35 | X774 | 21 | ||
| 14 | |||||||||
| 15 | |||||||||
| 16 | |||||||||
| 17 | JAE | M34S75C4F1 | 0.8x0.64F | GY/WH | 0.35 | X922M | 3 | ||
| 18 | JAE | M34S75C4F1 | 0.8x0.64F | GY | 0.35 | X922M | 13 | ||
| 19 | |||||||||
| 20 | |||||||||
