X396 - s-lhd-sop13

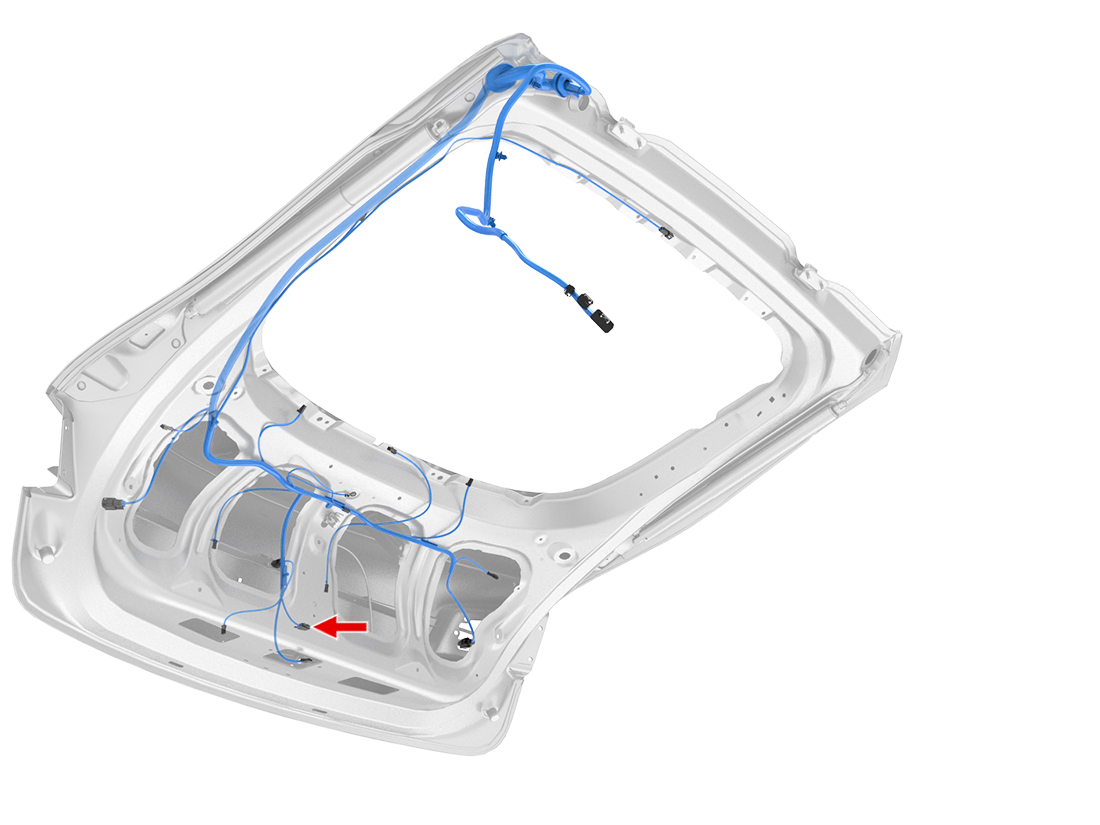

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 964280-2 | 2.8x0.8F | BN | 0.35 | X922F | 5 | ||
| 2 | AMP | 964280-2 | 2.8x0.8F | BN/WH | 0.35 | X922F | 14 |
