X397 - s-lhd-sop13

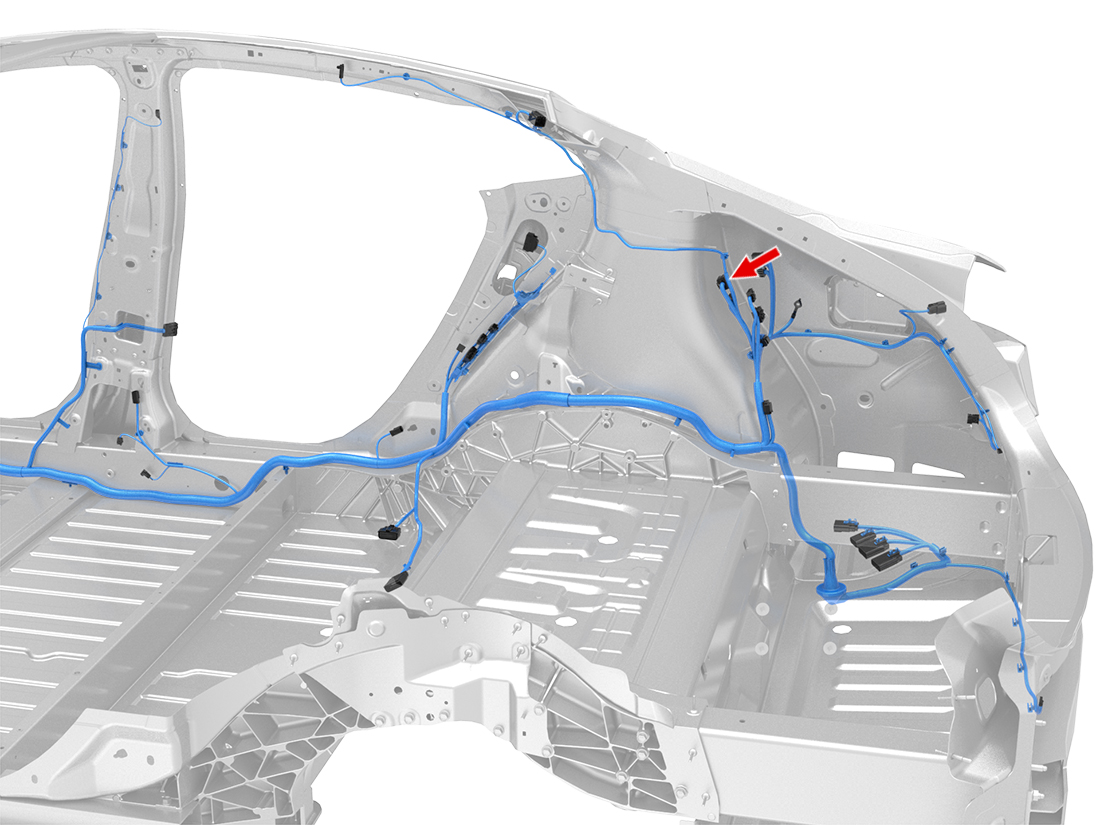

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | MOLEX | 33012-3004 | 1.5x0.8F | WH/BK | 0.35 | X922M | 4 | ||
| 2 | MOLEX | 33012-3004 | 1.5x0.8F | RD/VT | 0.50 | X391 | 3 | ||
| 3 | |||||||||
| 4 | MOLEX | 33012-3004 | 1.5x0.8F | RD | 0.50 | X391 | 2 | ||
| 5 | MOLEX | 33012-3004 | 1.5x0.8F | BN | 0.35 | X922M | 5 | ||
| 6 | MOLEX | 33012-3004 | 1.5x0.8F | BN/WH | 0.35 | X922M | 14 | ||
| 7 | BK | 2.00 | G700 | 1 | |||||
| 8 | GY | 2.00 | X574 | 6 | |||||
| 9 | RD/WH | 2.00 | X391 | 1 | |||||
| 10 | BK/WH | 2.00 | X391 | 4 | |||||
