X399 - s-lhd-sop13

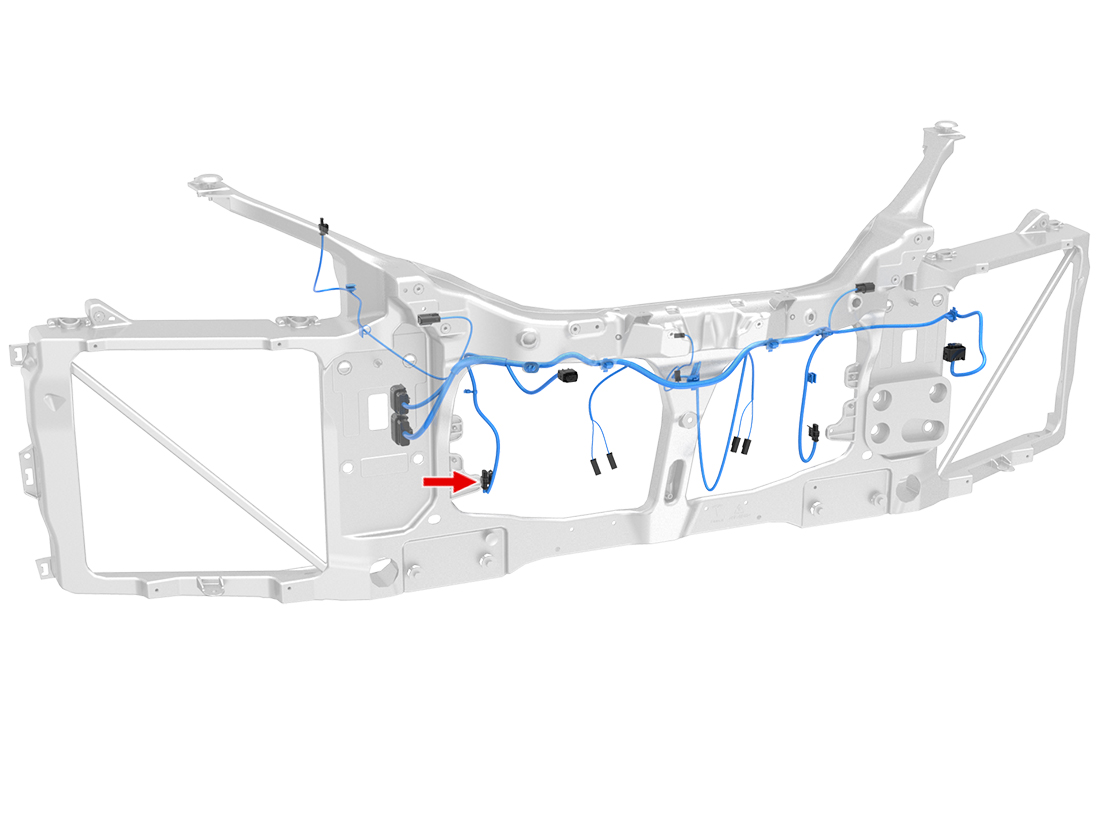

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 282403-1 | 1.5x0.8FS | WH/BK | 0.50 | AMP | 281934-4 | X960F | 5 |
| 2 | AMP | 282403-1 | 1.5x0.8FS | RD/VT | 0.50 | AMP | 281934-4 | X960F | 4 |
