X400 - s-lhd-sop13

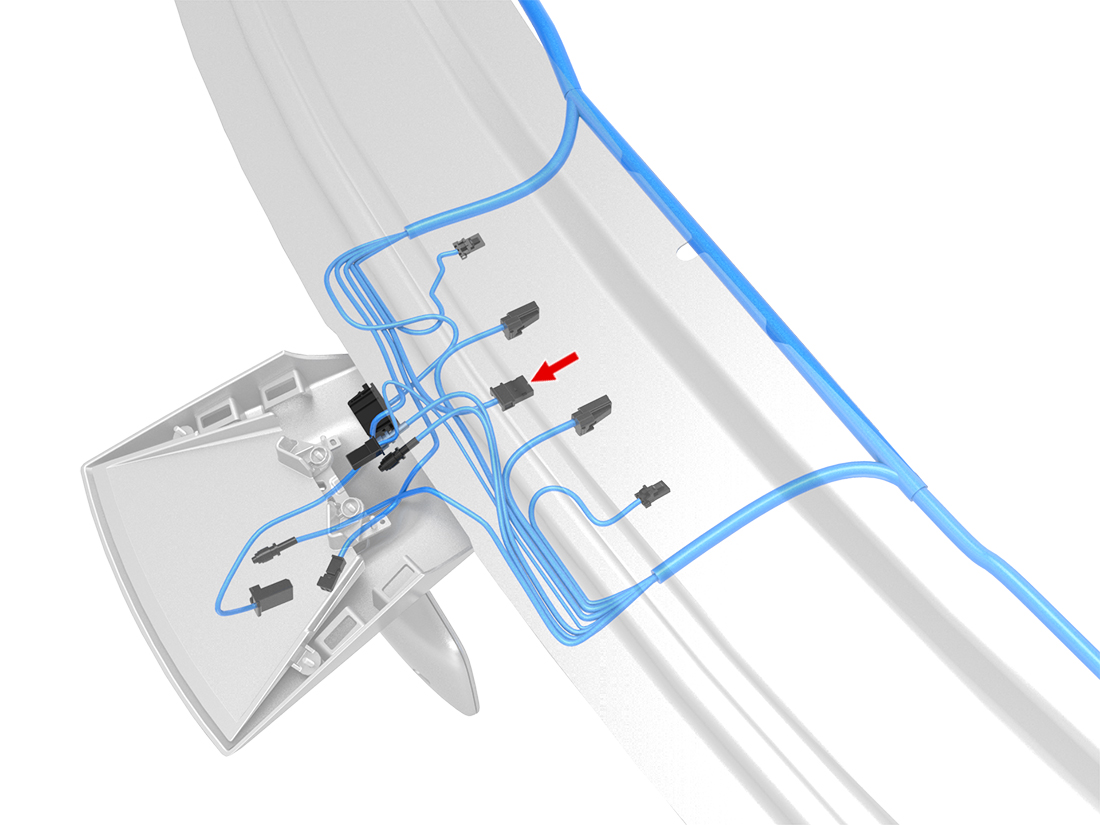

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 5-928999-1 | 0.63x0.63F | RD/BK | 0.35 | X968F | 16 | ||
| 2 | AMP | 5-928999-1 | 0.63x0.63F | GN/RD | 0.35 | X968F | 17 | ||
| 3 | AMP | 5-928999-1 | 0.63x0.63F | BK | 0.35 | ||||
| 4 | |||||||||
