X439 - s-lhd-sop13

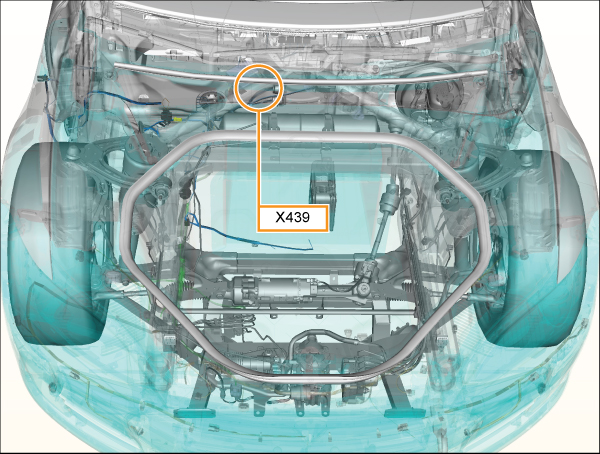

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 2-1703930-1 | 0.50x0.40F | RD/GN | 0.35 | X576 | 14 | ||
| 2 | |||||||||
| 3 | |||||||||
| 4 | AMP | 2-1703930-1 | 0.50x0.40F | BK | 0.35 | ||||
| 5 | |||||||||
| 6 | |||||||||
| 7 | AMP | 2-1703930-1 | 0.50x0.40F | GY/WH | 0.35 | X431 | 2 | ||
| 8 | |||||||||
| 9 | AMP | 2-1703930-1 | 0.50x0.40F | GY | 0.35 | X431 | 3 | ||
| 10 | |||||||||
