X763 - s-lhd-sop13

Tesla Part Number

1015413-00-A

Connector

YAZAKI 7283-2764-30

Color

BK

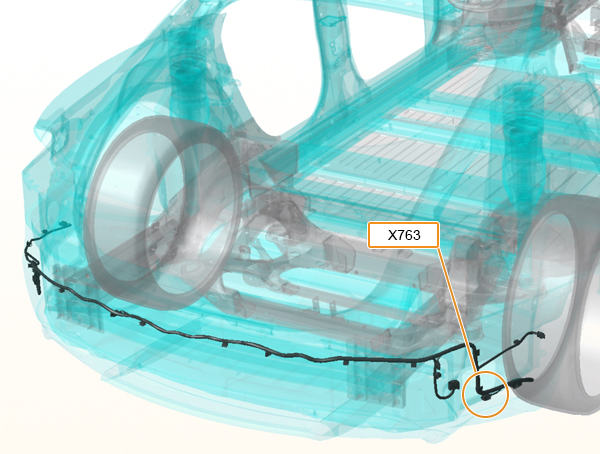

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	YAZAKI	7116-4416-02	0.64x0.64F	VT	0.50	YAZAKI	7158-3167-80	X148	3
2	YAZAKI	7116-4416-02	0.64x0.64F	VT	0.50	YAZAKI	7158-3167-80	X147	3
3	YAZAKI	7116-4416-02	0.64x0.64F	VT	0.50	YAZAKI	7158-3167-80	X909F	4
4	YAZAKI	7116-4416-02	0.64x0.64F	VT/WH	0.50	YAZAKI	7158-3167-80	X148	2
5	YAZAKI	7116-4416-02	0.64x0.64F	VT/WH	0.50	YAZAKI	7158-3167-80	X147	2
6	YAZAKI	7116-4416-02	0.64x0.64F	VT/WH	0.50	YAZAKI	7158-3167-80	X909F	3
