X808M - s-lhd-sop13

Tesla Part Number
1043844-02-A
Connector
ROSENBERGER 59Z074-C00-C
Color
BU

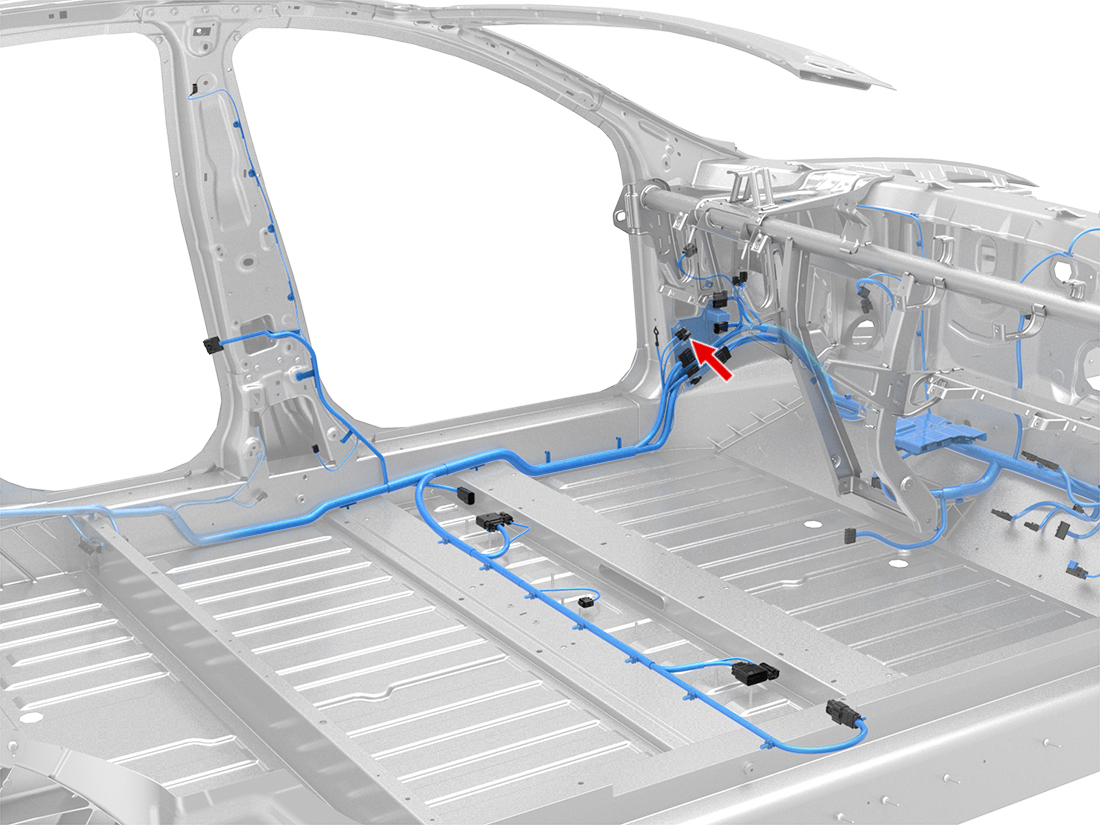

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1ROSENBERGER59S16A-1M4T4COAXMBKD302X824F2
