X818 - s-lhd-sop13

Tesla Part Number
1043844-08-A
Connector
ROSENBERGER 59Z074-C00-I
Color
BG

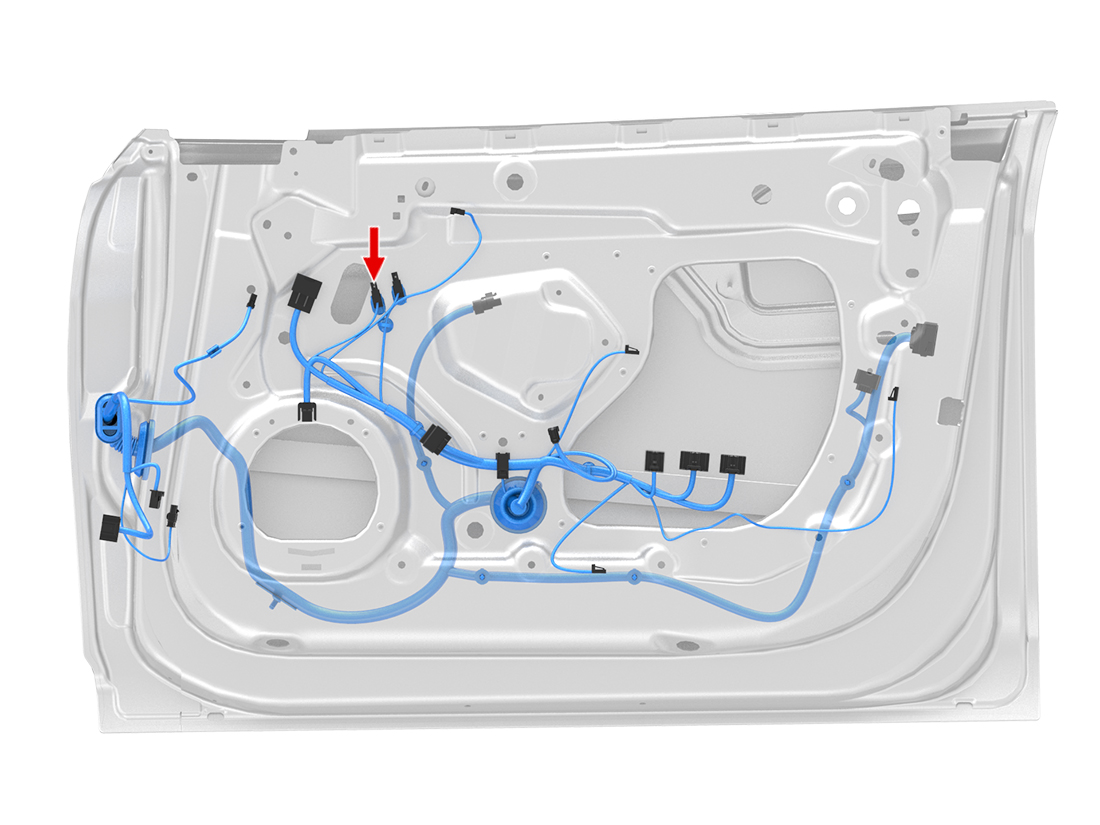

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1ROSENBERGER59S16A-102T4COAXMBKRG316X811M1
