X828 - s-lhd-sop13

Tesla Part Number
1046402-02-A
Connector
ROSENBERGER D4Z001-000-C
Color
BU

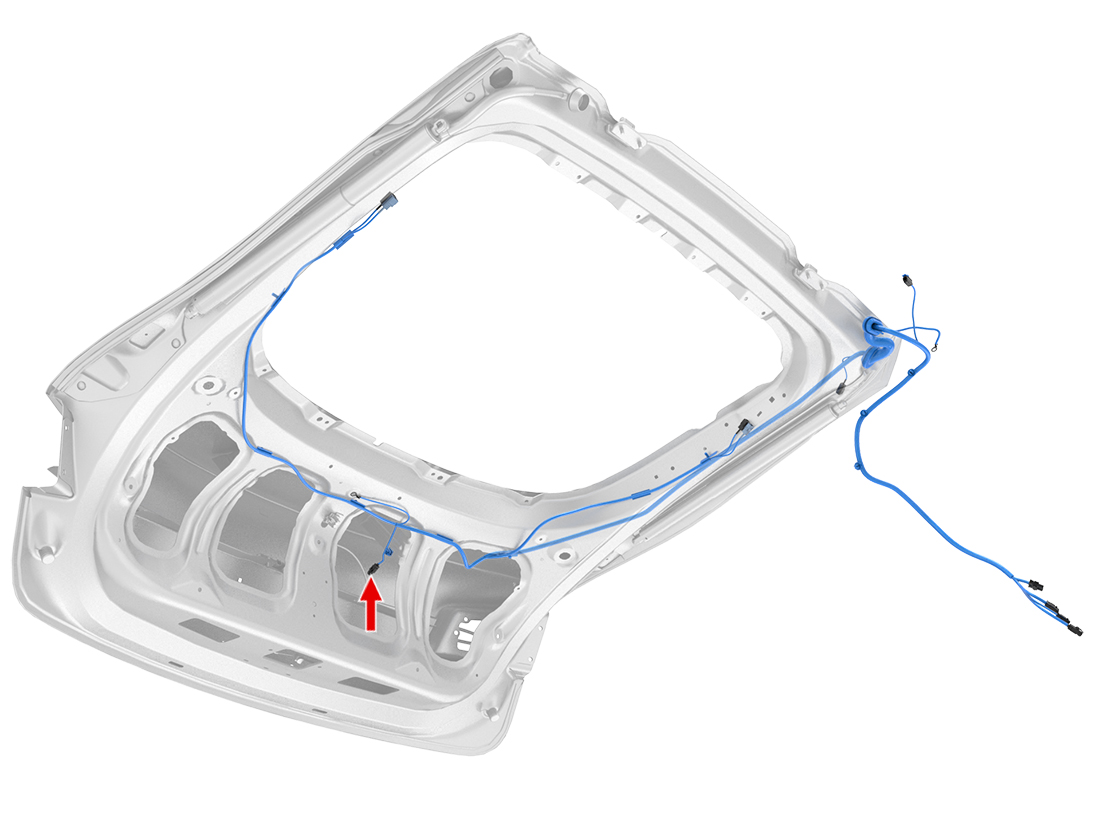

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
HROSENBERGERD4K10A-1D5A5HSDBKHSDX826FH
