X867 - s-lhd-sop13

Tesla Part Number
1090346-00-A
Connector
ROSENBERGER 59K27D-102Z4-A
Color
BK

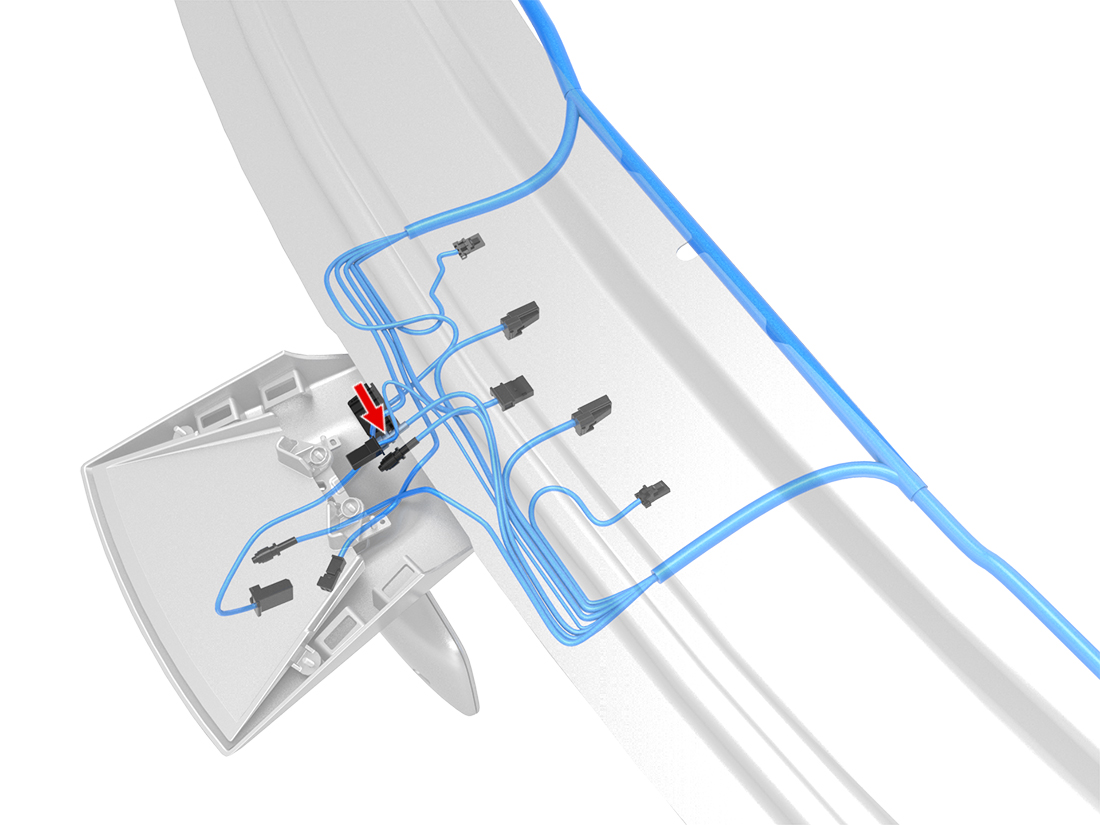

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1GENPIA-COAX-MCOAXBKRG316X871M1
