X925F - s-lhd-sop13

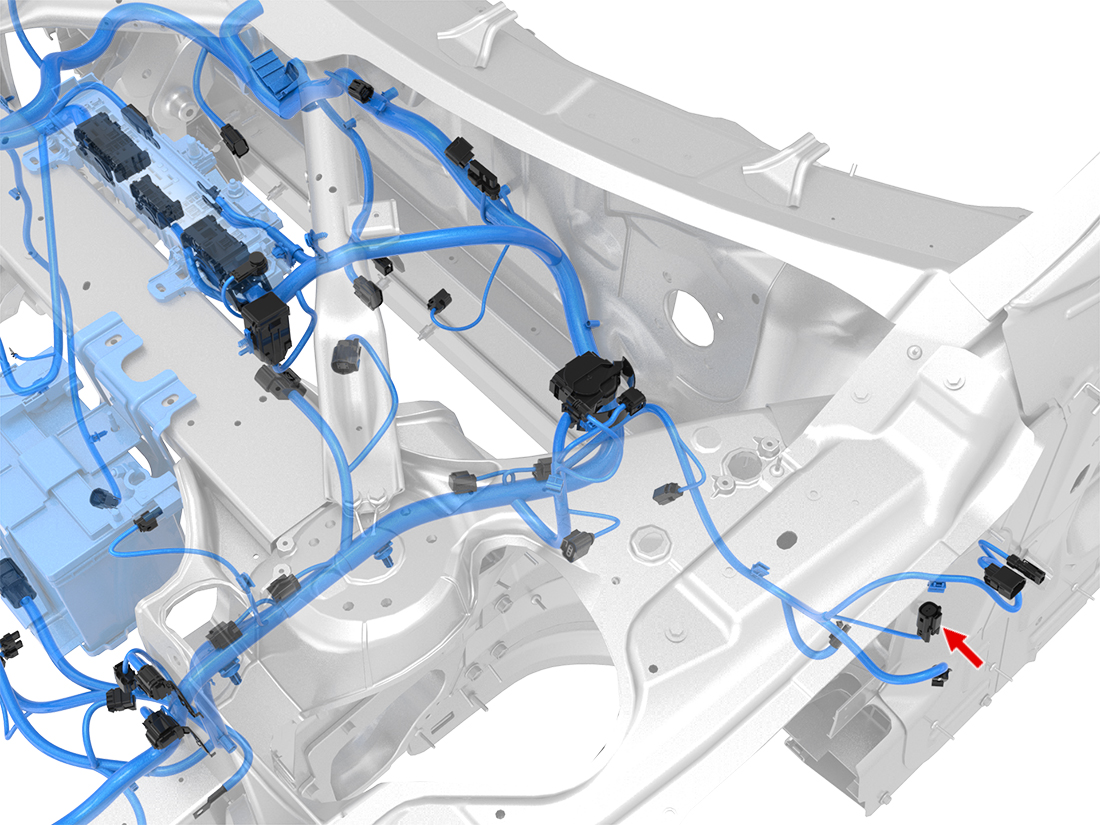

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | MOLEX | 33012-3004 | 1.5x0.8F | VT | 0.50 | TESLA | MAT-120-240 | X955F | 10 |
| 2 | MOLEX | 33012-3004 | 1.5x0.8F | BK | 0.50 | TESLA | MAT-120-240 | G500 | 1 |
