X930M - s-lhd-sop13

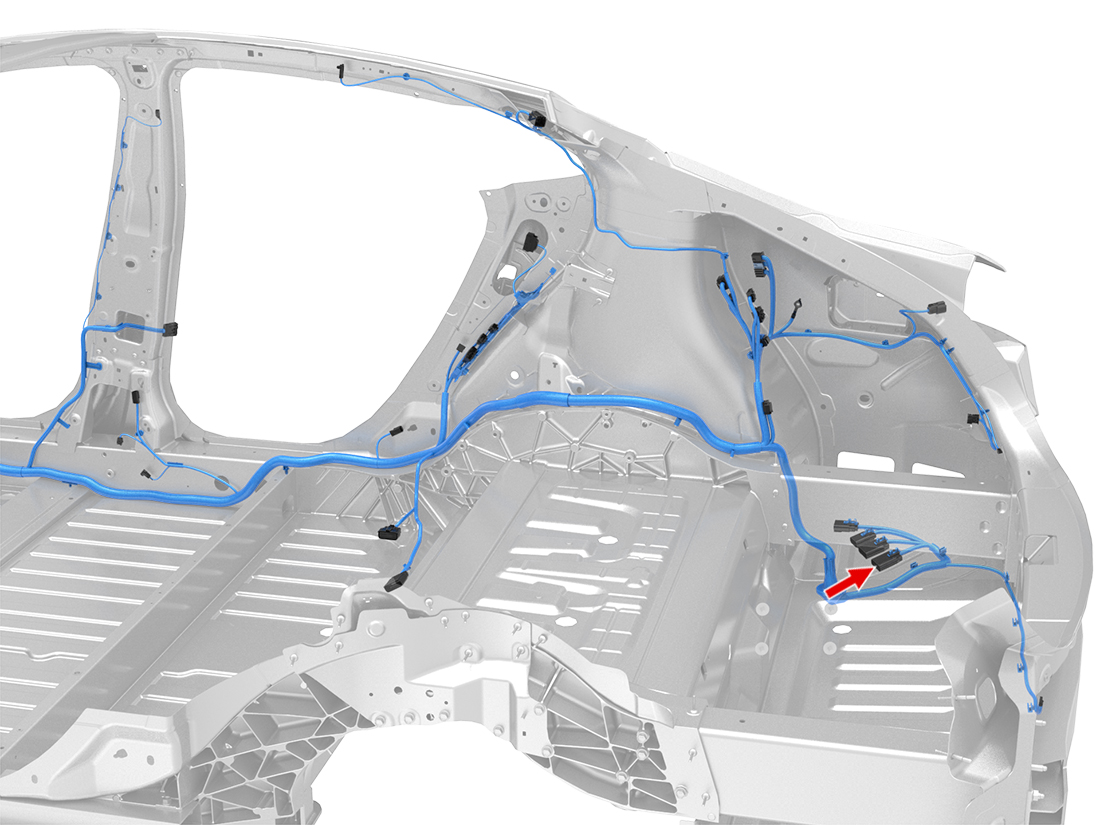

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | FCI | 54001401 | 2.8x0.8M | GY | 2.00 | TESLA | MAT-170-409 | X101 | 4 |
| 2 | FCI | 54001626 | 1.5x0.6M | YE | 1.0 | TESLA | MAT-140-240 | X971F | 15 |
| 3 | |||||||||
| 4 | FCI | 54002001 | 1.5x0.6M | GN | 0.50 | TESLA | MAT-140-240 | X977F | 6 |
| 5 | |||||||||
| 6 | |||||||||
| 7 | FCI | 54001401 | 2.8x0.8M | RD/WH | 2.00 | TESLA | MAT-170-409 | X101 | 5 |
| 8 | FCI | 54001401 | 2.8x0.8M | BK/WH | 2.00 | TESLA | MAT-170-409 | X101 | 3 |
| 9 | FCI | 54001626 | 1.5x0.6M | BK | 1.0 | TESLA | MAT-140-240 | G700 | 1 |
| 10 | |||||||||
| 11 | |||||||||
| 12 | |||||||||
| 13 | |||||||||
| 14 | FCI | 54001401 | 2.8x0.8M | RD/VT | 2.00 | TESLA | MAT-170-409 | X101 | 6 |
