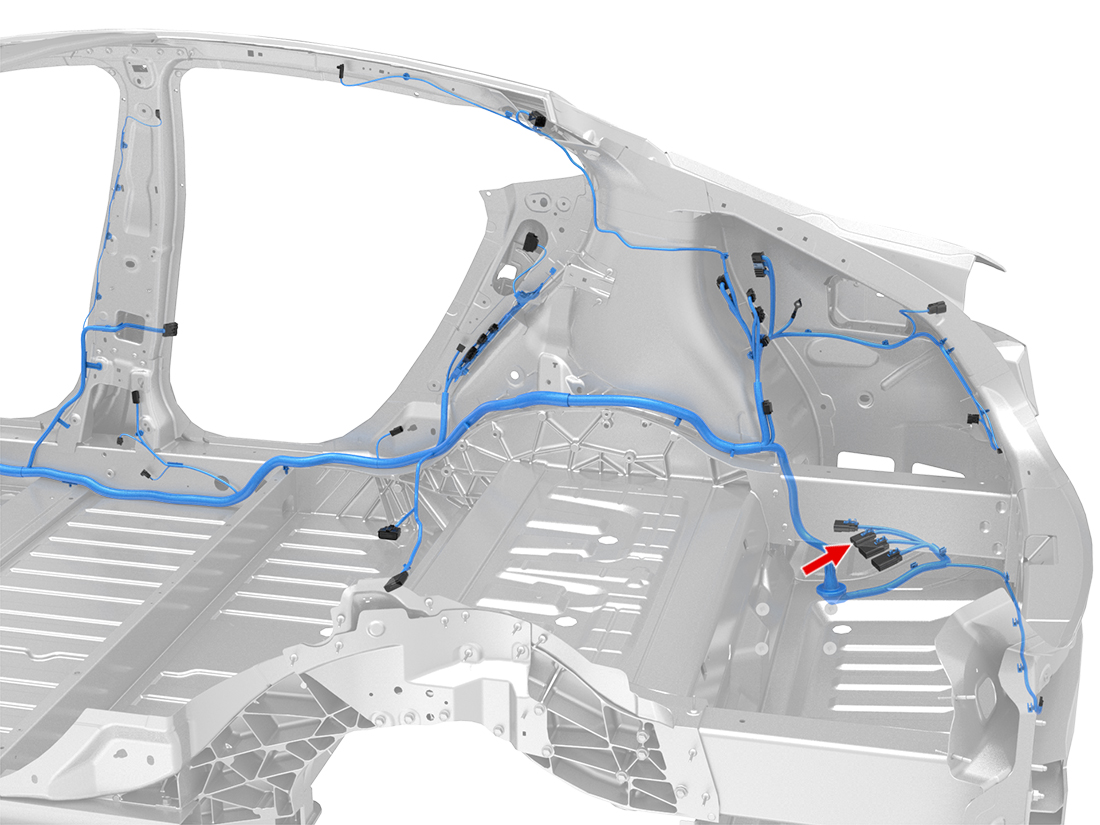

X932M - s-lhd-sop13

Tesla Part Number

1055685-01-A

Connector

MOLEX 33482-2102

Color

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	MOLEX	33000-0004	1.5x0.8M	RD/WH	0.50	TESLA	MAT-120-240	X779	2
2	MOLEX	33000-0004	1.5x0.8M	RD/GN	0.35	TESLA	MAT-120-240	X971F	2
3	MOLEX	33000-0004	1.5x0.8M	VT	0.35	TESLA	MAT-120-240	X971F	3
4	MOLEX	33000-0004	1.5x0.8M	BK	0.35	TESLA	MAT-120-240	X971F	4
5	MOLEX	33000-0004	1.5x0.8M	VT	0.35	TESLA	MAT-120-240	X971F	5
6	MOLEX	33000-0004	1.5x0.8M	BN	0.35	TESLA	MAT-120-240	X971F	6
7	MOLEX	33000-0004	1.5x0.8M	GN	0.35	TESLA	MAT-120-240	X971F	7
8	MOLEX	33000-0004	1.5x0.8M	BU	0.35	TESLA	MAT-120-240	X971F	8
9	MOLEX	33000-0004	1.5x0.8M	GN/WH	0.50	TESLA	MAT-120-240	X971F	11
10	MOLEX	33000-0004	1.5x0.8M	GN	0.50	TESLA	MAT-120-240	X971F	12
11	MOLEX	33000-0004	1.5x0.8M	RD	0.50	TESLA	MAT-120-240	X779	13
12	MOLEX	33000-0004	1.5x0.8M	RD/VT	0.35	TESLA	MAT-120-240	X971F	16
13	MOLEX	33000-0004	1.5x0.8M	BN	0.35	TESLA	MAT-120-240	X971F	17
14	MOLEX	33000-0004	1.5x0.8M	GY/WH	0.35	TESLA	MAT-120-240	X971F	18
15	MOLEX	33000-0004	1.5x0.8M	VT/WH	0.35	TESLA	MAT-120-240	X971F	19
16	MOLEX	33000-0004	1.5x0.8M	BN/WH	0.35	TESLA	MAT-120-240	X971F	20
17	MOLEX	33000-0004	1.5x0.8M	GN/WH	0.35	TESLA	MAT-120-240	X971F	21
18	MOLEX	33000-0004	1.5x0.8M	BU/WH	0.35	TESLA	MAT-120-240	X971F	22
19	MOLEX	33000-0004	1.5x0.8M	BK/WH	0.50	TESLA	MAT-120-240	X971F	13
20	MOLEX	33000-0004	1.5x0.8M	WH	0.50	TESLA	MAT-120-240	X971F	25
