X960F - s-lhd-sop13

Tesla Part Number

1029114-00-A

Connector

MOLEX 33472-1601

Color

BK

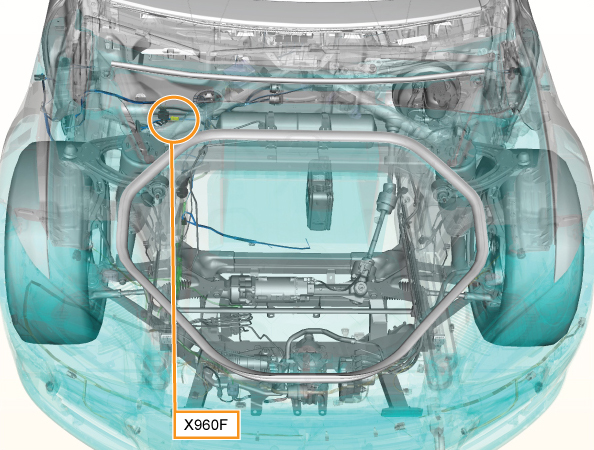

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	MOLEX	33012-3003	1.5x0.8F	RD	0.35	TESLA	MAT-120-240	X138A	4
2	MOLEX	33012-3003	1.5x0.8F	VT/WH	0.35	TESLA	MAT-120-240	X138A	5
3	MOLEX	33012-3003	1.5x0.8F	VT	0.35	TESLA	MAT-120-240	X138A	6
4	MOLEX	33012-3003	1.5x0.8F	RD/VT	0.50	TESLA	MAT-120-240	X399	2
5	MOLEX	33012-3003	1.5x0.8F	WH/BK	0.50	TESLA	MAT-120-240	X399	1
6	MOLEX	33012-3003	1.5x0.8F	RD/GN	0.50	TESLA	MAT-120-240	X392	2
7	MOLEX	33012-3003	1.5x0.8F	GY/WH	0.50	TESLA	MAT-120-240	X392	1
8	MOLEX	33012-3003	1.5x0.8F	BK	0.50	TESLA	MAT-120-240
9
10	MOLEX	33012-3003	1.5x0.8F	BN	0.50	TESLA	MAT-120-240	X383	1
11	MOLEX	33012-3003	1.5x0.8F	WH/BU	0.35	TESLA	MAT-120-240	X288	1
12	MOLEX	33012-3003	1.5x0.8F	WH	0.35	TESLA	MAT-120-240	X435A	1
13	MOLEX	33012-3003	1.5x0.8F	RD/YE	0.50	TESLA	MAT-120-240	X379	1
14	MOLEX	33012-3003	1.5x0.8F	RD	0.35	TESLA	MAT-120-240	X202	1
15	MOLEX	33012-3003	1.5x0.8F	VT/WH	0.35	TESLA	MAT-120-240	X202	2
