X960M - s-lhd-sop13

Tesla Part Number

1029115-00-B

Connector

MOLEX 33482-8601

Color

BK

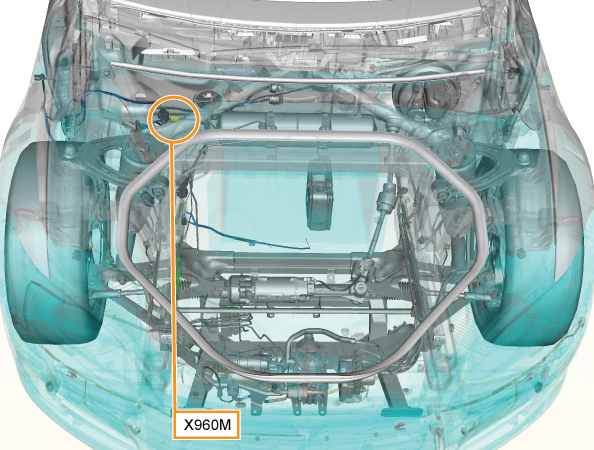

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	MOLEX	33000-0004	1.5x0.8M	RD	0.35	TESLA	MAT-120-240	X561	16
2	MOLEX	33000-0004	1.5x0.8M	VT/WH	0.35	TESLA	MAT-120-240	X953F	10
3	MOLEX	33000-0004	1.5x0.8M	VT	0.35	TESLA	MAT-120-240	X953F	22
4	MOLEX	33000-0004	1.5x0.8M	RD/VT	0.35	TESLA	MAT-120-240	X954F	12
5	MOLEX	33000-0004	1.5x0.8M	WH/BK	0.35	TESLA	MAT-120-240	X954F	13
6	MOLEX	33000-0004	1.5x0.8M	RD/GN	0.35	TESLA	MAT-120-240	X954F	14
7	MOLEX	33000-0004	1.5x0.8M	GY/WH	0.35	TESLA	MAT-120-240	X954F	15
8	MOLEX	33000-0004	1.5x0.8M	BK	0.50	TESLA	MAT-120-240	G500	1
9
10	MOLEX	33000-0004	1.5x0.8M	BN	0.35	TESLA	MAT-120-240	X953F	23
11	MOLEX	33000-0004	1.5x0.8M	WH/BU	0.35	TESLA	MAT-120-240	X954F	25
12	MOLEX	33000-0004	1.5x0.8M	WH	0.35	TESLA	MAT-120-240	X020	20
13	MOLEX	33000-0004	1.5x0.8M	RD/YE	0.35	TESLA	MAT-120-240	X954F	2
14	MOLEX	33000-0004	1.5x0.8M	RD	0.35	TESLA	MAT-120-240
15	MOLEX	33000-0004	1.5x0.8M	VT/WH	0.35	TESLA	MAT-120-240
16
