X963F - s-lhd-sop13

Tesla Part Number

1003314-00-A

Connector

MOLEX 33472-1201

Color

BK

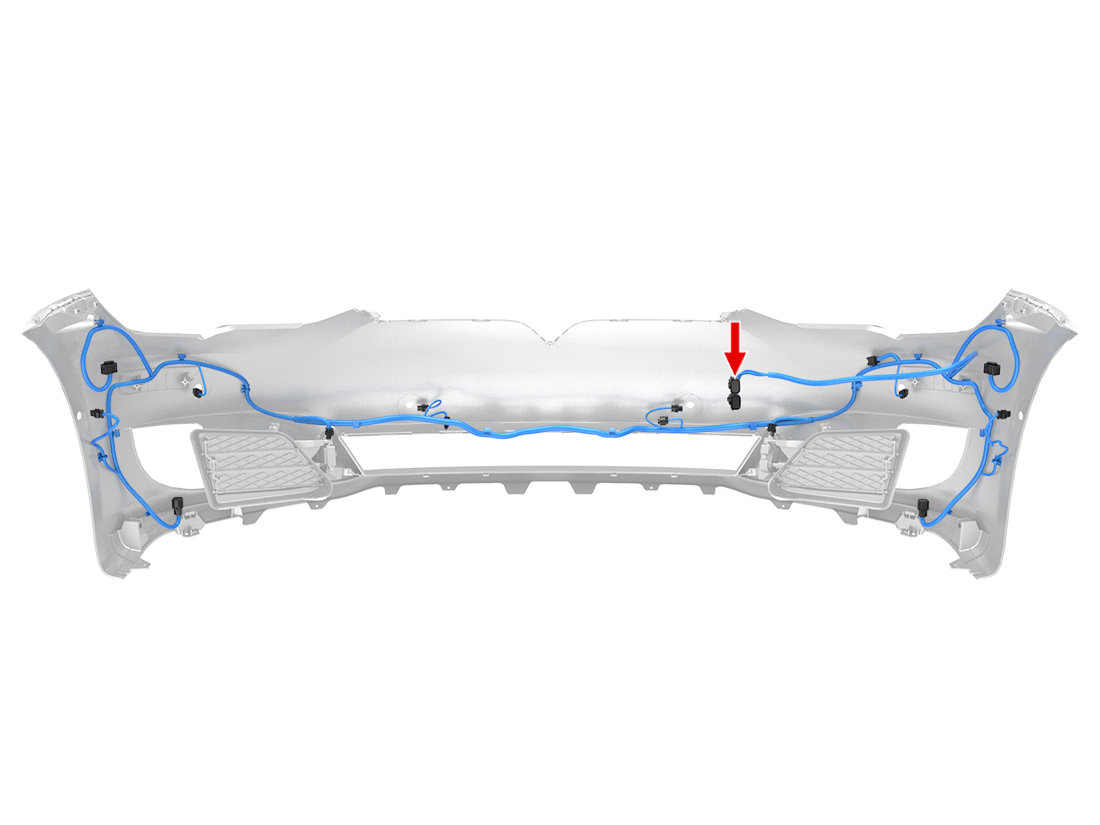

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	MOLEX	33012-3004	1.5x0.8F	BN	0.35	TESLA	MAT-120-240
2	MOLEX	33012-3004	1.5x0.8F	RD/VT	0.35	TESLA	MAT-120-240
3	MOLEX	33012-3004	1.5x0.8F	RD/GN	0.35	TESLA	MAT-120-240	X125A	2
4	MOLEX	33012-3004	1.5x0.8F	WH	0.35	TESLA	MAT-120-240	X126A	2
5	MOLEX	33012-3004	1.5x0.8F	BN/WH	0.35	TESLA	MAT-120-240	X127A	2
6	MOLEX	33012-3004	1.5x0.8F	OG/BK	0.35	TESLA	MAT-120-240	X128A	2
7	MOLEX	33012-3004	1.5x0.8F	RD/YE	0.35	TESLA	MAT-120-240	X133A	2
8	MOLEX	33012-3004	1.5x0.8F	BU/WH	0.35	TESLA	MAT-120-240	X132A	2
9	MOLEX	33012-3004	1.5x0.8F	RD/BU	0.35	TESLA	MAT-120-240	X244	1
10	MOLEX	33012-3004	1.5x0.8F	BK/VT	0.35	TESLA	MAT-120-240	X244	2
11	MOLEX	33012-3004	1.5x0.8F	RD/YE	0.35	TESLA	MAT-120-240	X245	1
12	MOLEX	33012-3004	1.5x0.8F	BK	0.35	TESLA	MAT-120-240	X245	2
