X967F - s-lhd-sop13

Tesla Part Number

1015422-00-A

Connector

YAZAKI 7283-6388-40

Color

GY

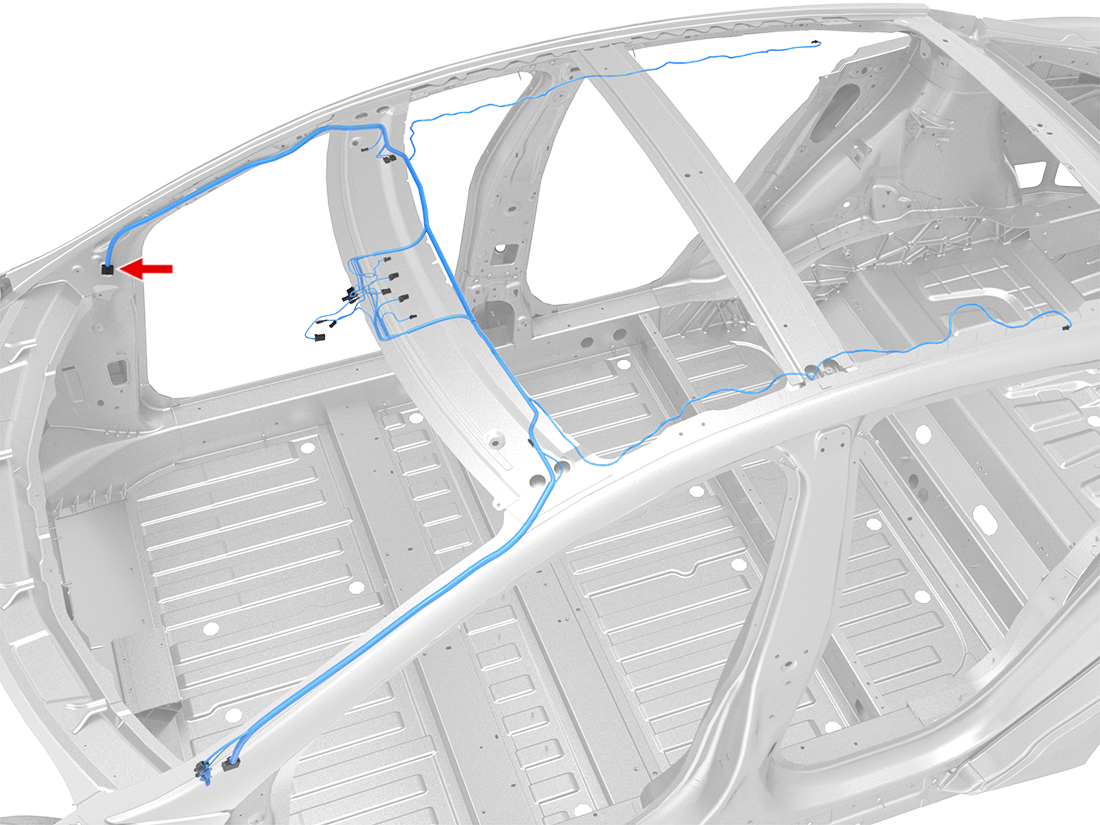

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1
2				VT/WH	0.35			X075	1
3				RD/VT	0.35			X075	3
4				YE	0.35			X075	2
5
6
7				OG	0.35			X408A	3
8				GN	0.35			X408A	4
9				BK/WH	0.35			X408A	5
10	YAZAKI	7116-4721-02	0.64x0.64F	BK	0.75
11
12				WH	0.35			X284	3
13				GY	0.35			X284	1
14				BU	0.35			X285	3
15				RD/BK	0.35			X285	1
16				GY/WH	0.35			X283	3
17				YE/WH	0.35			X283	1
18				WH/BU	0.35			X282	3
19				RD/WH	0.35			X282	1
20
