X971M - s-lhd-sop13

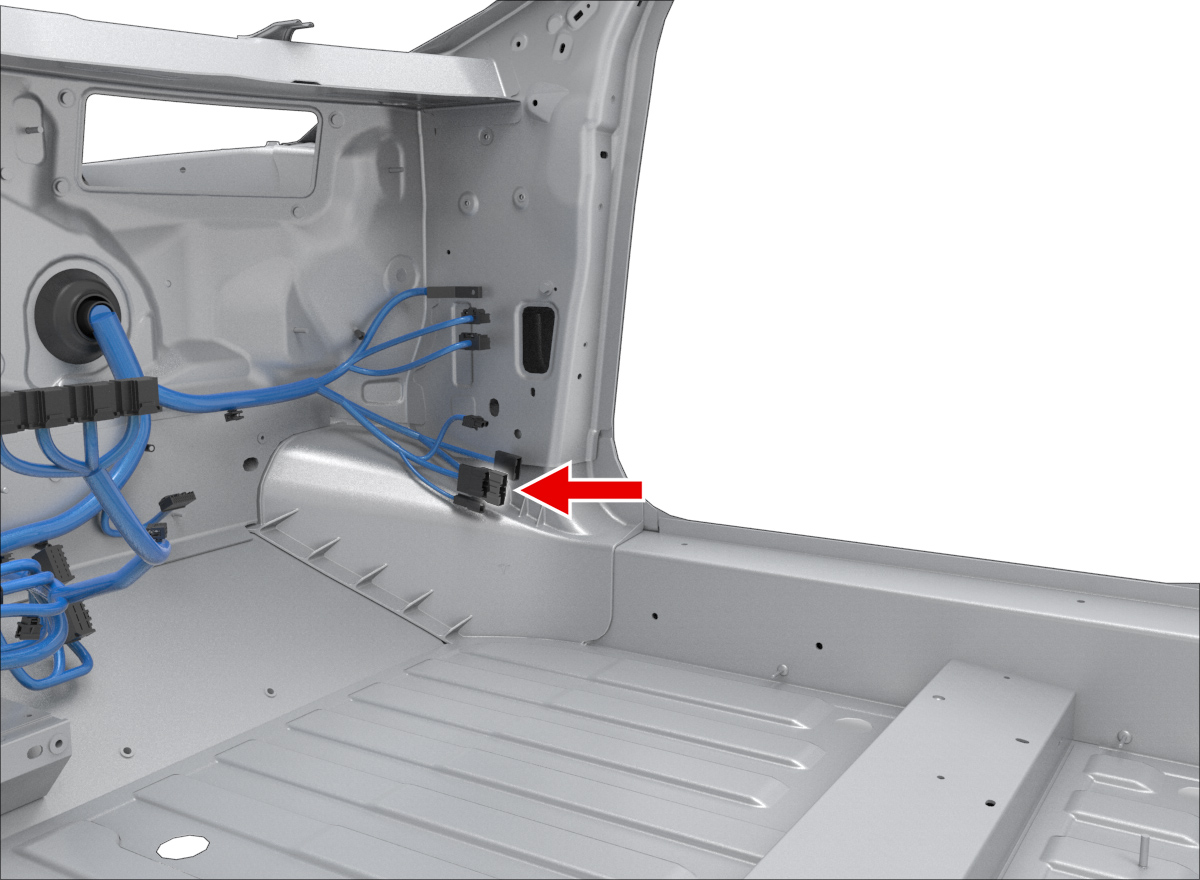

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | SUMITOMO | 8230-4923 | 1.5x0.6M | RD/GY | 2.00 | X561 | 18 | ||
| 2 | SUMITOMO | 8100-3623 | 0.64x0.64M | RD/GN | 0.35 | X176 | 2 | ||
| 3 | SUMITOMO | 8100-3623 | 0.64x0.64M | VT | 0.35 | X176 | 30 | ||
| 4 | SUMITOMO | 8100-3623 | 0.64x0.64M | BK | 0.35 | X176 | 29 | ||
| 5 | SUMITOMO | 8100-3623 | 0.64x0.64M | VT | 0.35 | X179 | 13 | ||
| 6 | SUMITOMO | 8100-3623 | 0.64x0.64M | BN | 0.35 | X179 | 14 | ||
| 7 | SUMITOMO | 8100-3623 | 0.64x0.64M | GN | 0.35 | X179 | 11 | ||
| 8 | SUMITOMO | 8100-3623 | 0.64x0.64M | BU | 0.35 | X179 | 12 | ||
| 9 | |||||||||
| 10 | |||||||||
| 11 | SUMITOMO | 8100-3623 | 0.64x0.64M | GN/WH | 0.50 | X106 | 31 | ||
| 12 | SUMITOMO | 8100-3623 | 0.64x0.64M | GN | 0.50 | X106 | 18 | ||
| 13 | SUMITOMO | 8100-3623 | 0.64x0.64M | BK/WH | 0.50 | X106 | 17 | ||
| 14 | |||||||||
| 15 | SUMITOMO | 8230-4923 | 1.5x0.6M | RD/GN | 2.00 | X561 | 5 | ||
| 16 | SUMITOMO | 8100-3623 | 0.64x0.64M | RD/VT | 0.35 | X176 | 13 | ||
| 17 | SUMITOMO | 8100-3623 | 0.64x0.64M | BN | 0.35 | X176 | 10 | ||
| 18 | SUMITOMO | 8100-3623 | 0.64x0.64M | GY/WH | 0.35 | X176 | 20 | ||
| 19 | SUMITOMO | 8100-3623 | 0.64x0.64M | VT/WH | 0.35 | X179 | 16 | ||
| 20 | SUMITOMO | 8100-3623 | 0.64x0.64M | BN/WH | 0.35 | X179 | 15 | ||
| 21 | SUMITOMO | 8100-3623 | 0.64x0.64M | GN/WH | 0.35 | X179 | 4 | ||
| 22 | SUMITOMO | 8100-3623 | 0.64x0.64M | BU/WH | 0.35 | X179 | 5 | ||
| 23 | |||||||||
| 24 | |||||||||
| 25 | SUMITOMO | 8100-3623 | 0.64x0.64M | WH | 0.50 | X106 | 29 | ||
| 26 | |||||||||
