X976M - s-lhd-sop13

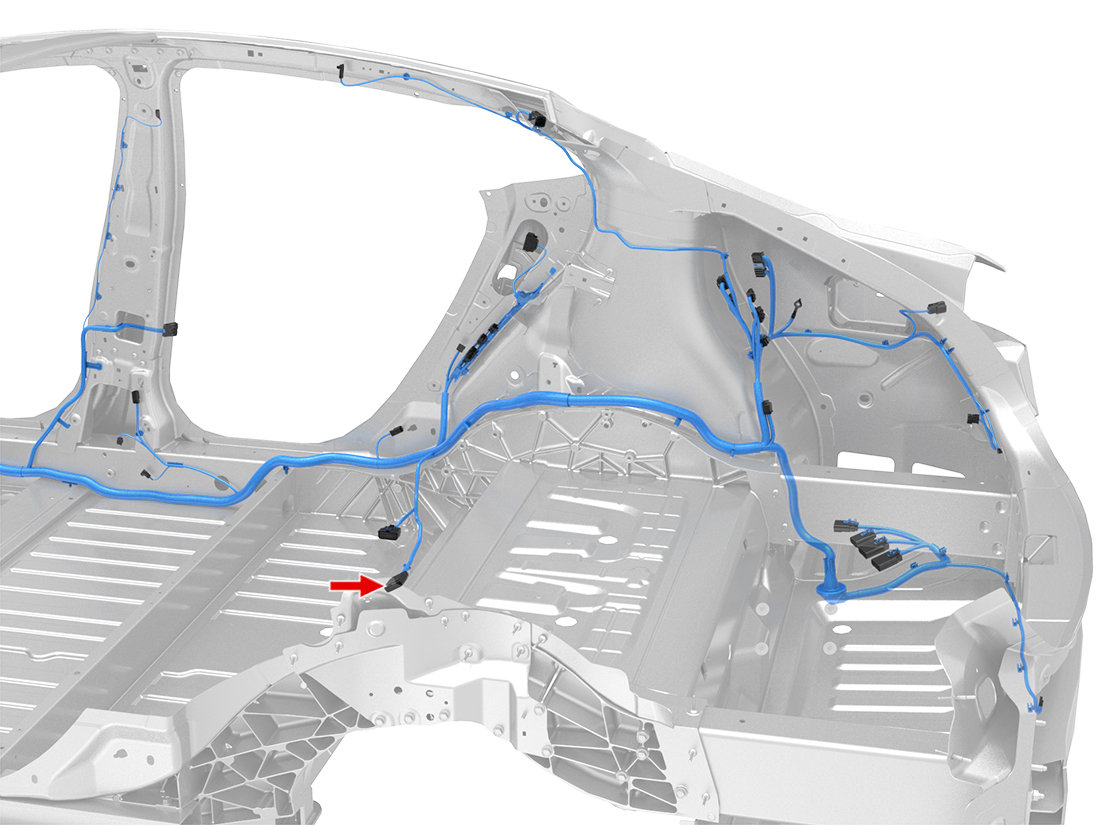

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | |||||||||
| 2 | MOLEX | 33000-0004 | 1.5x0.8M | OG | 0.35 | TESLA | MAT-120-240 | ||
| 3 | MOLEX | 33000-0004 | 1.5x0.8M | BN/WH | 0.35 | TESLA | MAT-120-240 | X774 | 8 |
| 4 | MOLEX | 33000-0004 | 1.5x0.8M | RD/WH | 0.35 | TESLA | MAT-120-240 | X779 | 3 |
| 5 | MOLEX | 33000-0004 | 1.5x0.8M | GN/WH | 0.35 | TESLA | MAT-120-240 | X779 | 9 |
| 6 | MOLEX | 33000-0004 | 1.5x0.8M | VT | 0.35 | TESLA | MAT-120-240 | X042A | 5 |
| 7 | MOLEX | 33000-0004 | 1.5x0.8M | WH/BK | 0.35 | TESLA | MAT-120-240 | X042A | 2 |
| 8 | MOLEX | 33000-0004 | 1.5x0.8M | RD/GY | 0.35 | TESLA | MAT-120-240 | X042A | 6 |
| 9 | MOLEX | 33000-0004 | 1.5x0.8M | RD/YE | 0.50 | TESLA | MAT-120-240 | X931M | 5 |
| 10 | MOLEX | 33000-0004 | 1.5x0.8M | BU/WH | 0.35 | TESLA | MAT-120-240 | X042A | 19 |
| 11 | |||||||||
| 12 | |||||||||
| 13 | MOLEX | 33000-0004 | 1.5x0.8M | BN | 0.35 | TESLA | MAT-120-240 | X774 | 19 |
| 14 | MOLEX | 33000-0004 | 1.5x0.8M | RD | 0.35 | TESLA | MAT-120-240 | X779 | 14 |
| 15 | MOLEX | 33000-0004 | 1.5x0.8M | GN | 0.35 | TESLA | MAT-120-240 | X779 | 20 |
| 16 | MOLEX | 33000-0004 | 1.5x0.8M | WH | 0.35 | TESLA | MAT-120-240 | X042A | 15 |
| 17 | MOLEX | 33000-0004 | 1.5x0.8M | GN | 0.35 | TESLA | MAT-120-240 | X042A | 8 |
| 18 | MOLEX | 33000-0004 | 1.5x0.8M | GY | 0.50 | TESLA | MAT-120-240 | X042A | 16 |
| 19 | MOLEX | 33000-0004 | 1.5x0.8M | YE/WH | 0.50 | TESLA | MAT-120-240 | X042A | 3 |
| 20 | MOLEX | 33000-0004 | 1.5x0.8M | BU | 0.35 | TESLA | MAT-120-240 | X042A | 9 |
