X978F - s-lhd-sop13

Tesla Part Number
1042623-00-A
Connector
SUMITOMO 6098-0824
Color
WH

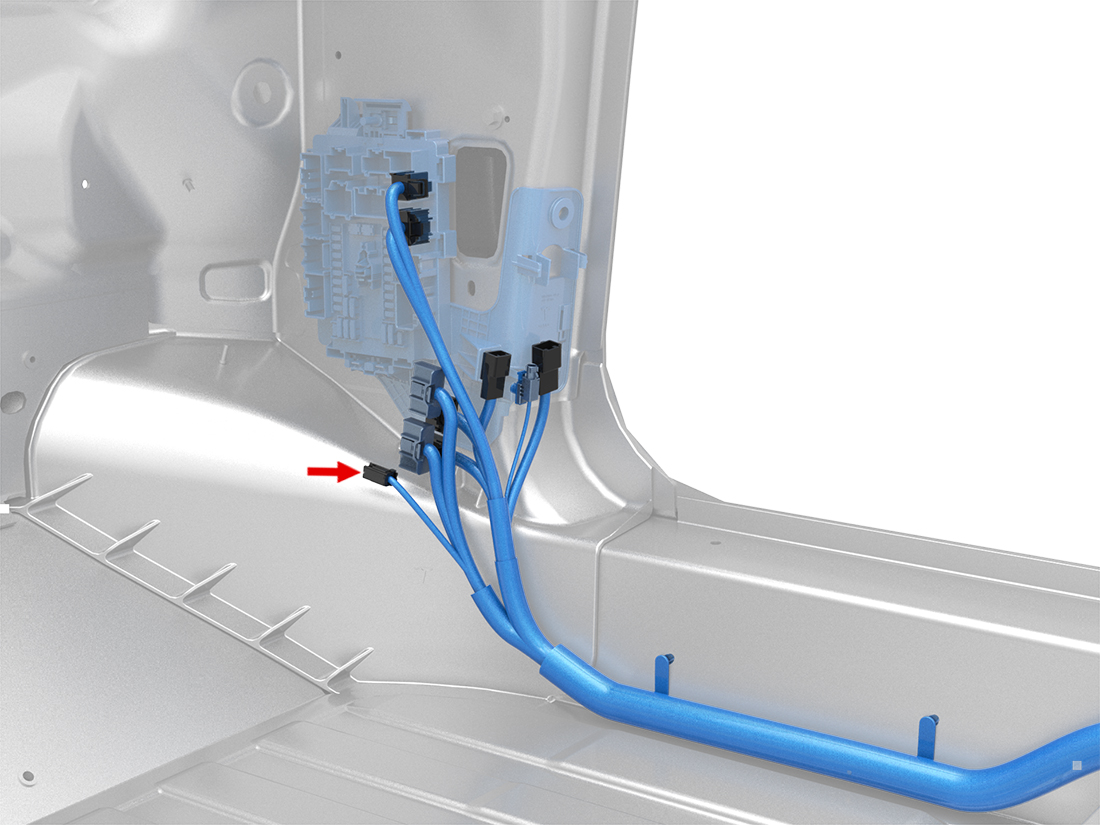

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1SUMITOMO8240-49324.8x0.8FRD/GN2.50X923M1
