X987M - s-lhd-sop13

Tesla Part Number

1042611-03-A

Connector

SUMITOMO 6098-6095

Color

GY

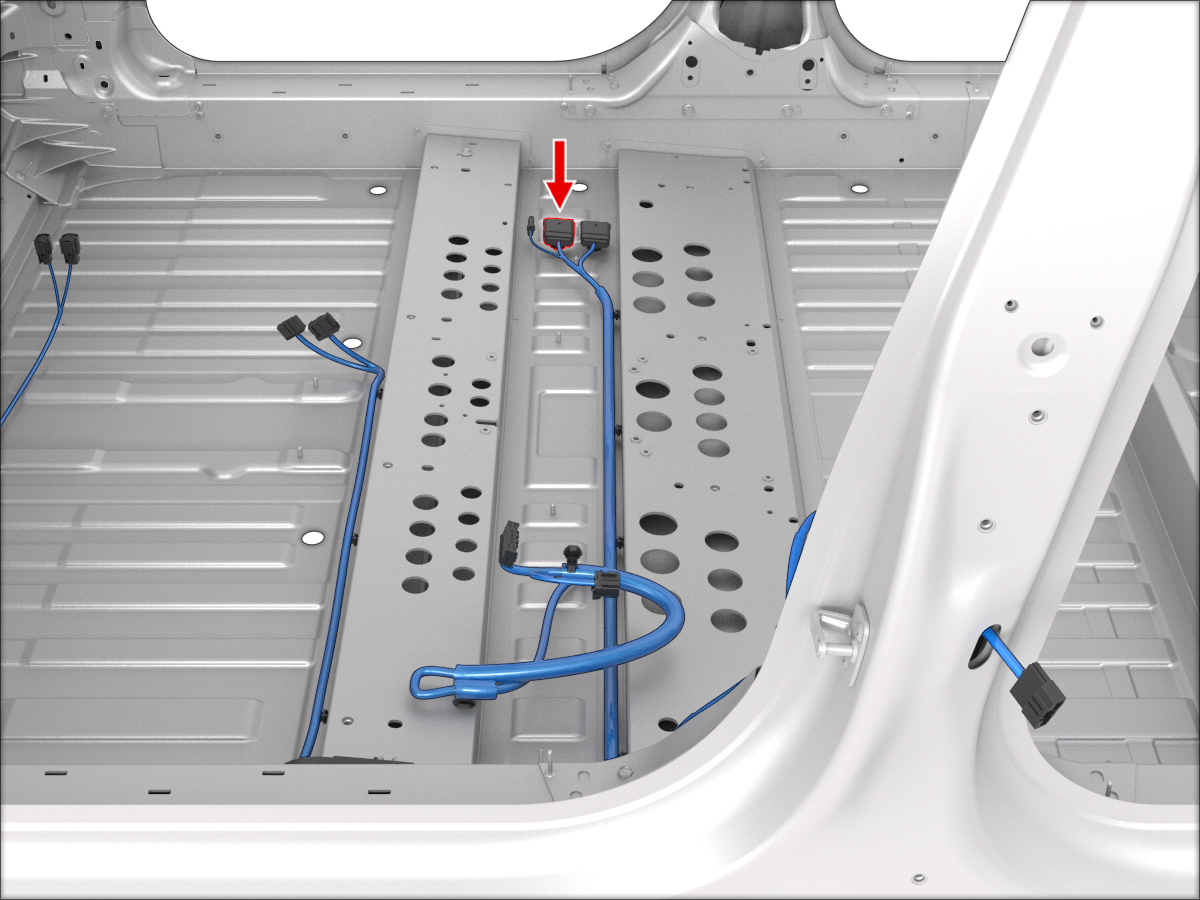

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8230-4925	1.5x0.6M	RD/BU	0.50			X578	10
2	SUMITOMO	8100-3623	0.64x0.64M	OG	0.50			X252	1
3	SUMITOMO	8100-3623	0.64x0.64M	GY	0.50			X252	2
4	SUMITOMO	8100-3623	0.64x0.64M	BU/WH	0.50			X252	6
5	SUMITOMO	8100-3623	0.64x0.64M	BU	0.50			X252	5
6	SUMITOMO	8100-3623	0.64x0.64M	BN/WH	0.35			X022	9
7	SUMITOMO	8230-4925	1.5x0.6M	GN/WH	0.50			X107	3
8
9	SUMITOMO	8100-3623	0.64x0.64M	GN	0.50			X252	3
10	SUMITOMO	8100-3623	0.64x0.64M	BK/VT	0.50			X252	4
11	SUMITOMO	8100-3623	0.64x0.64M	BN	0.35			X022	10
12	SUMITOMO	8230-4925	1.5x0.6M	WH	0.35			X944M	4
