X988F - s-lhd-sop13

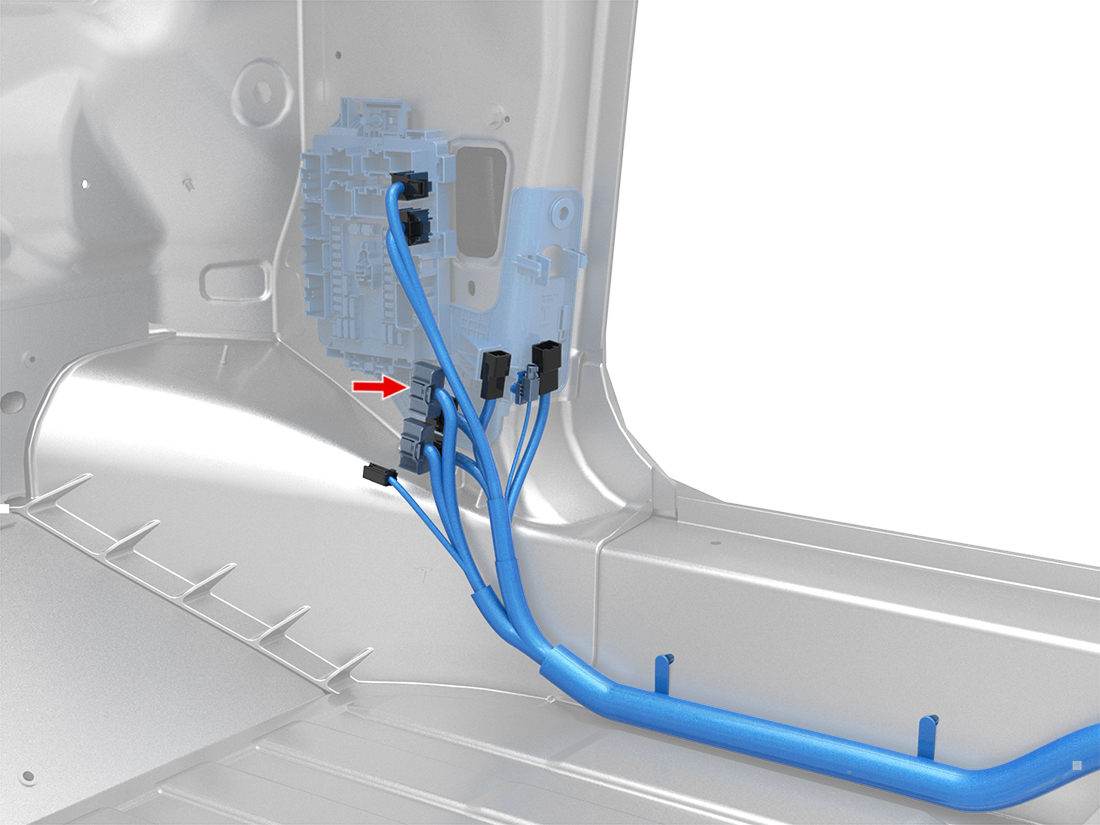

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | |||||||||
| 2 | SUMITOMO | 8100-3625 | 0.64x0.64F | RD/WH | 0.35 | X220 | 1 | ||
| 3 | SUMITOMO | 8100-3625 | 0.64x0.64F | WH/RD | 0.50 | X218 | 1 | ||
| 4 | SUMITOMO | 8100-3625 | 0.64x0.64F | VT | 0.35 | X207 | 1 | ||
| 5 | SUMITOMO | 8100-3625 | 0.64x0.64F | RD/BK | 0.35 | X209 | 1 | ||
| 6 | SUMITOMO | 8100-3625 | 0.64x0.64F | WH/BK | 0.35 | X221 | 1 | ||
| 7 | SUMITOMO | 8100-3625 | 0.64x0.64F | BU | 0.35 | X221 | 2 | ||
| 8 | SUMITOMO | 8100-3625 | 0.64x0.64F | RD | 0.35 | X482 | 1 | ||
| 9 | SUMITOMO | 8100-3625 | 0.64x0.64F | SI | 0.35 | ||||
| 10 | SUMITOMO | 8100-3625 | 0.64x0.64F | YE | 0.35 | ||||
| 11 | SUMITOMO | 8100-3625 | 0.64x0.64F | WH/RD | 0.35 | X921M | 1 | ||
| 12 | SUMITOMO | 8100-3625 | 0.64x0.64F | BN | 0.35 | X921M | 3 | ||
| 13 | SUMITOMO | 8100-3625 | 0.64x0.64F | GY/WH | 0.35 | X921M | 8 | ||
| 14 | |||||||||
| 15 | |||||||||
| 16 | SUMITOMO | 8100-3625 | 0.64x0.64F | BK/GY | 0.35 | X220 | 2 | ||
| 17 | SUMITOMO | 8100-3625 | 0.64x0.64F | WH/BU | 0.50 | X218 | 2 | ||
| 18 | SUMITOMO | 8100-3625 | 0.64x0.64F | RD/BU | 0.35 | X207 | 2 | ||
| 19 | SUMITOMO | 8100-3625 | 0.64x0.64F | BK/WH | 0.35 | X209 | 2 | ||
| 20 | SUMITOMO | 8100-3625 | 0.64x0.64F | RD/GY | 0.35 | X921M | 5 | ||
| 21 | SUMITOMO | 8100-3625 | 0.64x0.64F | BK | 0.35 | X482 | 3 | ||
| 22 | SUMITOMO | 8100-3625 | 0.64x0.64F | WH/BU | 0.35 | X774 | 5 | ||
| 23 | SUMITOMO | 8100-3625 | 0.64x0.64F | BU | 0.35 | X774 | 16 | ||
| 24 | SUMITOMO | 8100-3625 | 0.64x0.64F | BN/WH | 0.35 | ||||
| 25 | SUMITOMO | 8100-3625 | 0.64x0.64F | OG | 0.35 | X921M | 4 | ||
| 26 | SUMITOMO | 8240-0215 | 1.5x0.64F | RD/BK | 0.35 | X272 | 4 | ||
