X034 - s-lhd-sop2

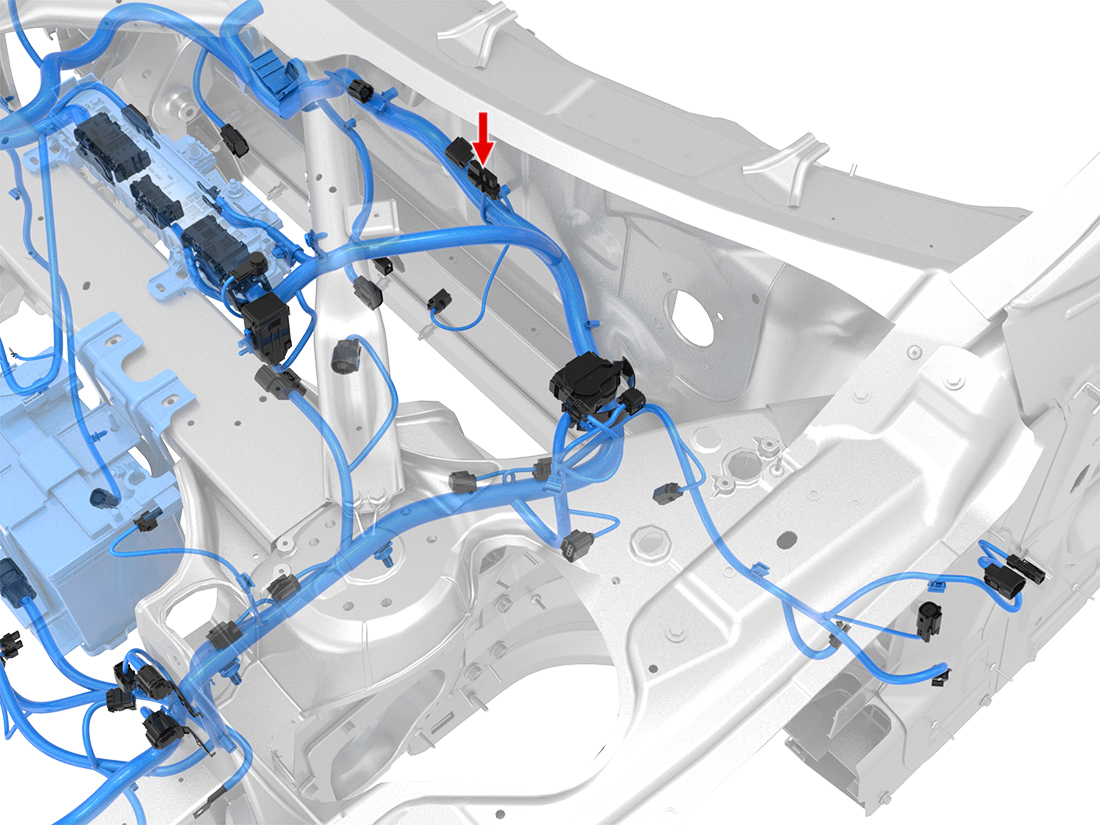

Location:
Connector Detail: delphi_12084891
Gender:
Color: DarkGray
| Cav | Col | Gauge |
|---|---|---|
| A | WH/BK | 2 |
| B | RD/BK | 1 |
| C | BK | 1 |
| D | DB | 2 |
| E | RD/GY | 2 |
2012-2020 Model S Connector Reference
