X040 - s-lhd-sop2

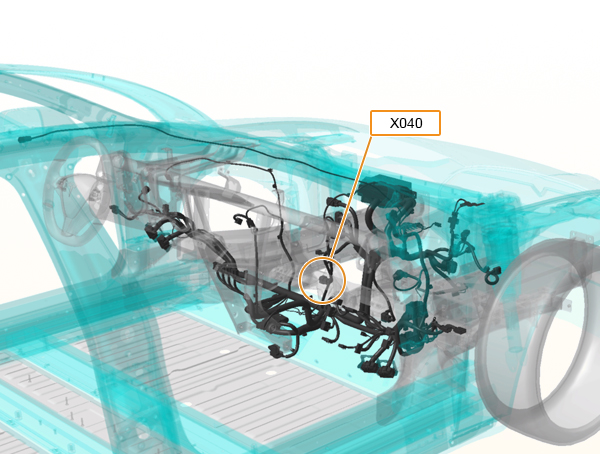

Location:
Connector Detail: molex_19418-0011
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 1 | RD | 0.5 |
| 2 | DB | 0.5 |
| 4 | RD/BK | 0.5 |
| 5 | YE/DB | 0.5 |
| 6 | YE/GY | 0.5 |
