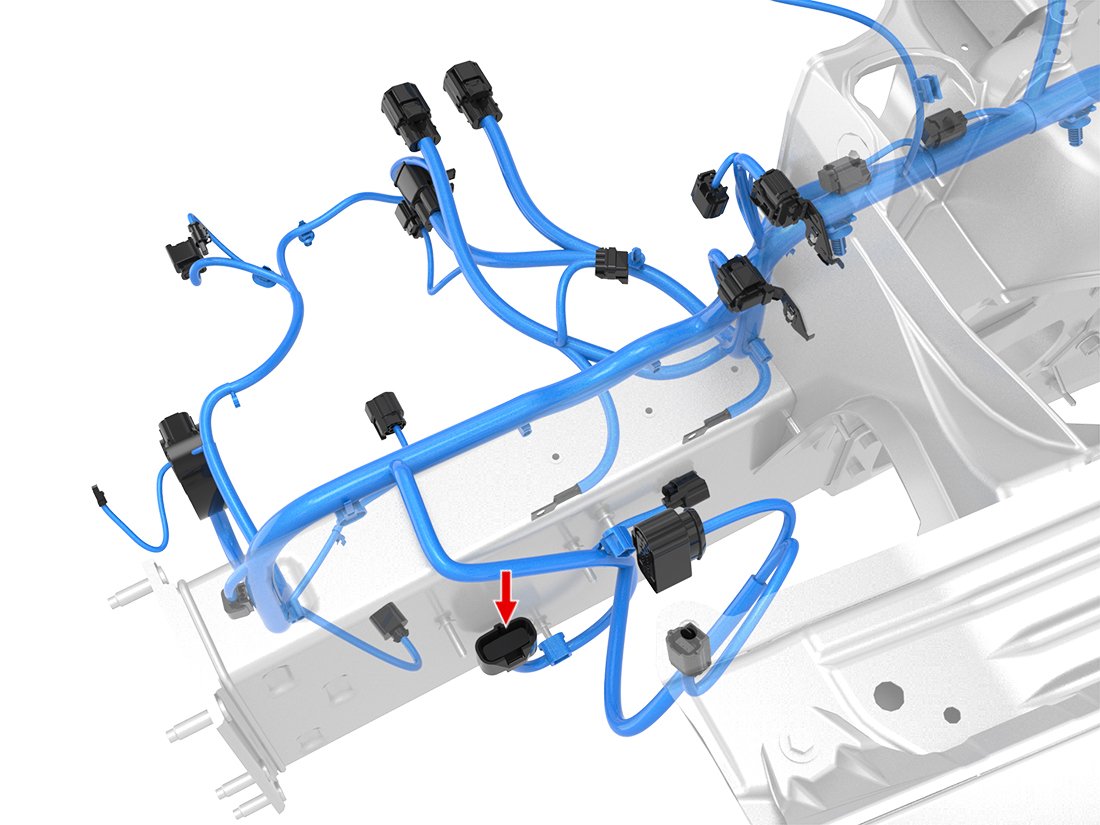

X079 - s-lhd-sop2
Location:
Connector Detail: sumitomo_6189-0588
Gender:
Color: Gray
| Cav | Col | Gauge |
|---|---|---|
| 1 | OG/YE | 5 |
| 2 | WH/RD | 0.35 |
| 3 | BK | 5 |
2012-2020 Model S Connector Reference
