X085 - s-lhd-sop2

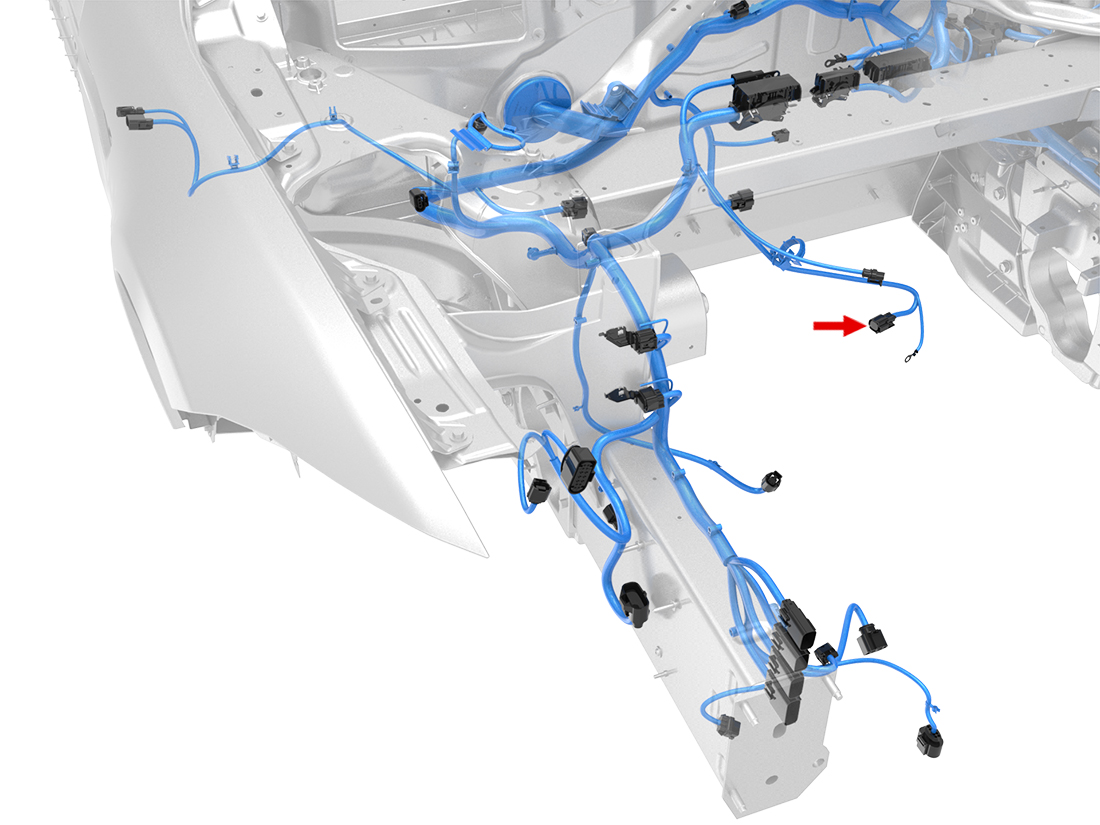

Location:
Connector Detail: sumitomo_6189-1240
Gender:
Color: Gray
| Cav | Col | Gauge |
|---|---|---|
| 1 | BK | 0.35 |
| 2 | WH/RD | 0.35 |
| 3 | WH/DB | 0.35 |
| 5 | WH/DG | 0.35 |
| 6 | WH/OG | 0.35 |
| 7 | WH/BN | 0.35 |
2012-2020 Model S Connector Reference
