X137 - s-lhd-sop2

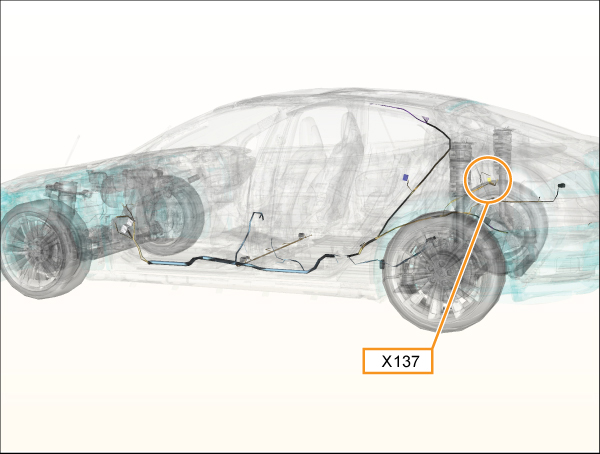

Location:
Connector Detail: molex_34729-0081
Gender:
Color: LightGray
| Cav | Col | Gauge |
|---|---|---|
| 1 | GY/RD | 0.35 |
| 2 | GY/OG | 0.35 |
| 3 | GY/YE | 0.35 |
| 4 | GY/BN | 0.5 |
| 5 | GY/DG | 0.35 |
| 6 | GY/BK | 0.5 |
2012-2020 Model S Connector Reference
