X164 - s-lhd-sop2

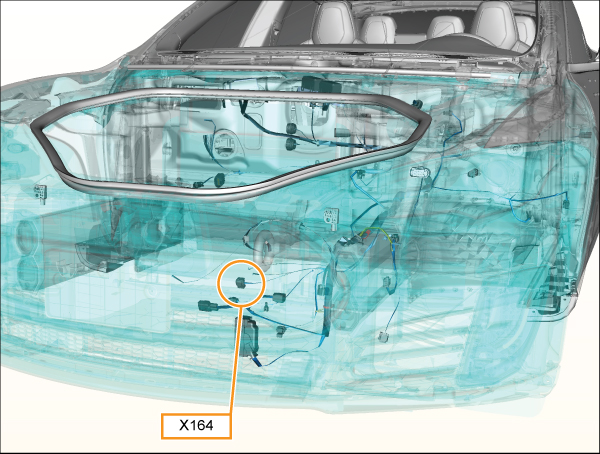

Location:
Connector Detail: amp_1-967616-1
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 2 | DG | 0.5 |
| 5 | DG/WH | 0.5 |
| 6 | WH/BK | 0.5 |
