X262 - s-lhd-sop2

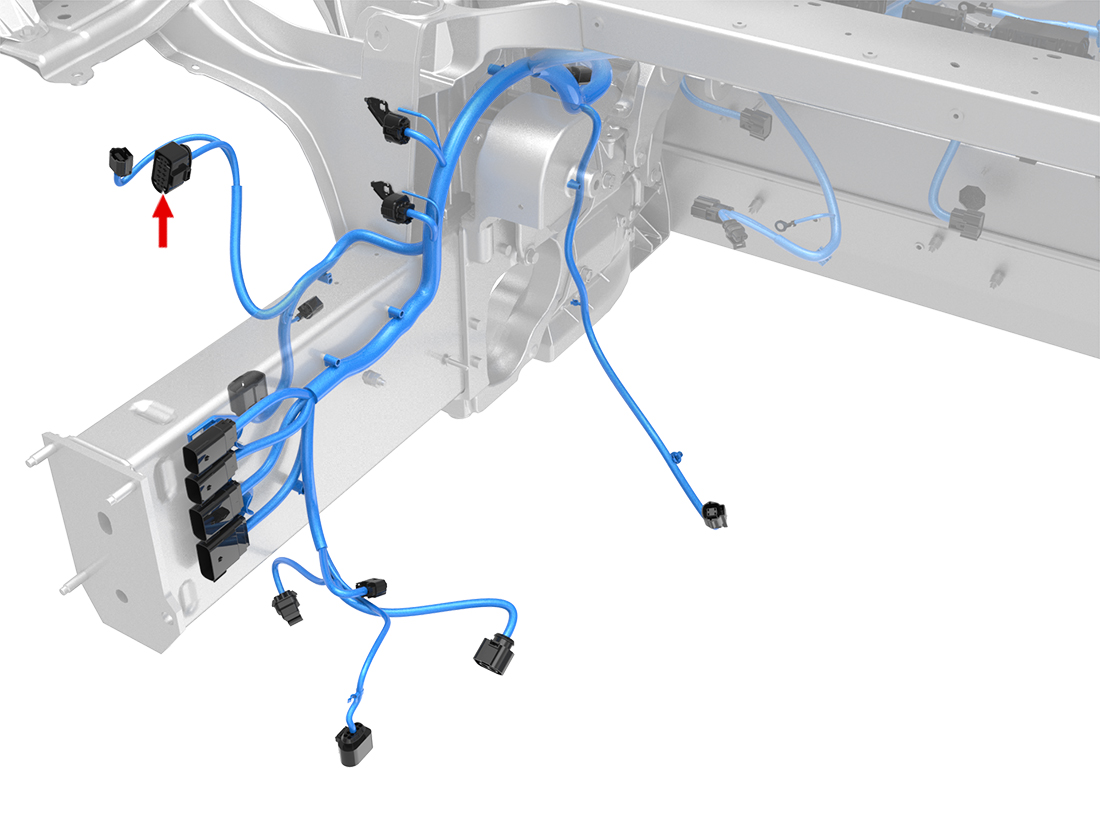

Location:
Connector Detail: amp_1719105-1
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 2 | PK/DG | 0.35 |
| 3 | DB/GY | 0.5 |
| 4 | DG | 0.75 |
| 5 | DG/RD | 1 |
| 6 | BU/WH | 1 |
| 7 | OG/DG | 0.75 |
| 8 | BK | 1 |
