X283 - s-lhd-sop2

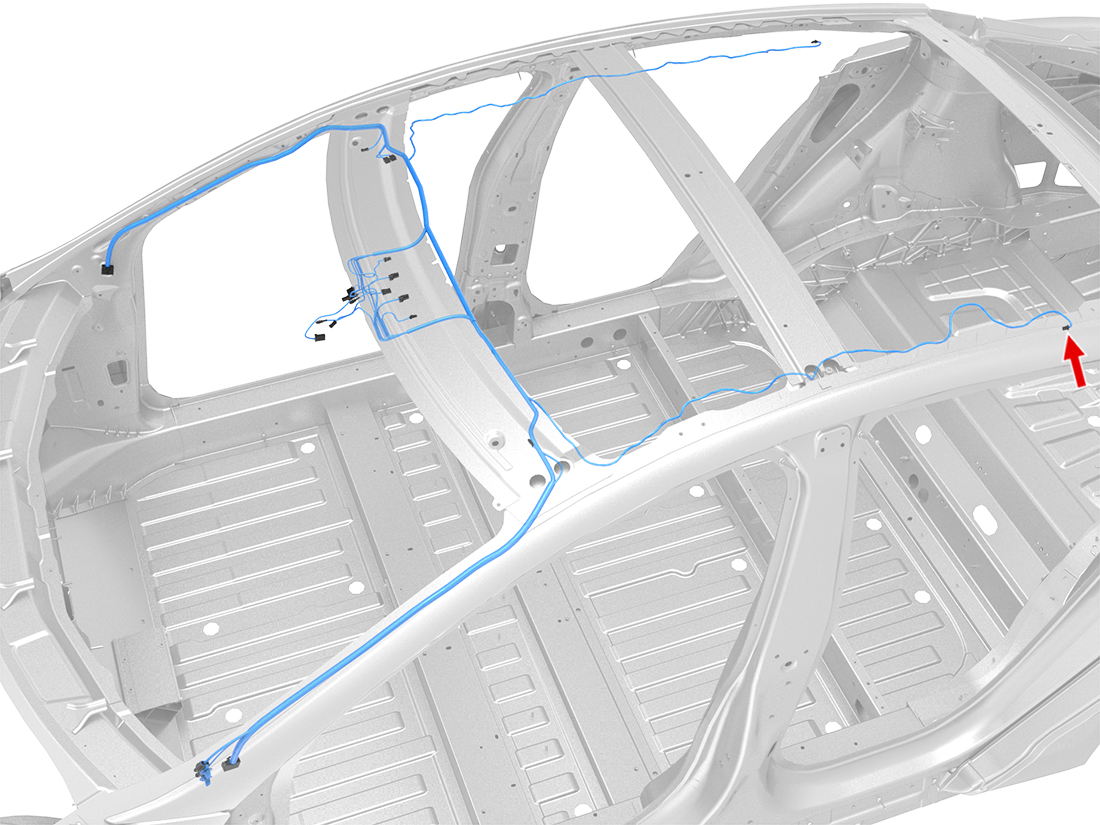

Location:
Connector Detail: molex_50-57-9703
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 1 | GY/DB | 0.35 |
| 2 | BK | 0.35 |
| 3 | GY/DG | 0.35 |
2012-2020 Model S Connector Reference
