X331 - s-lhd-sop2

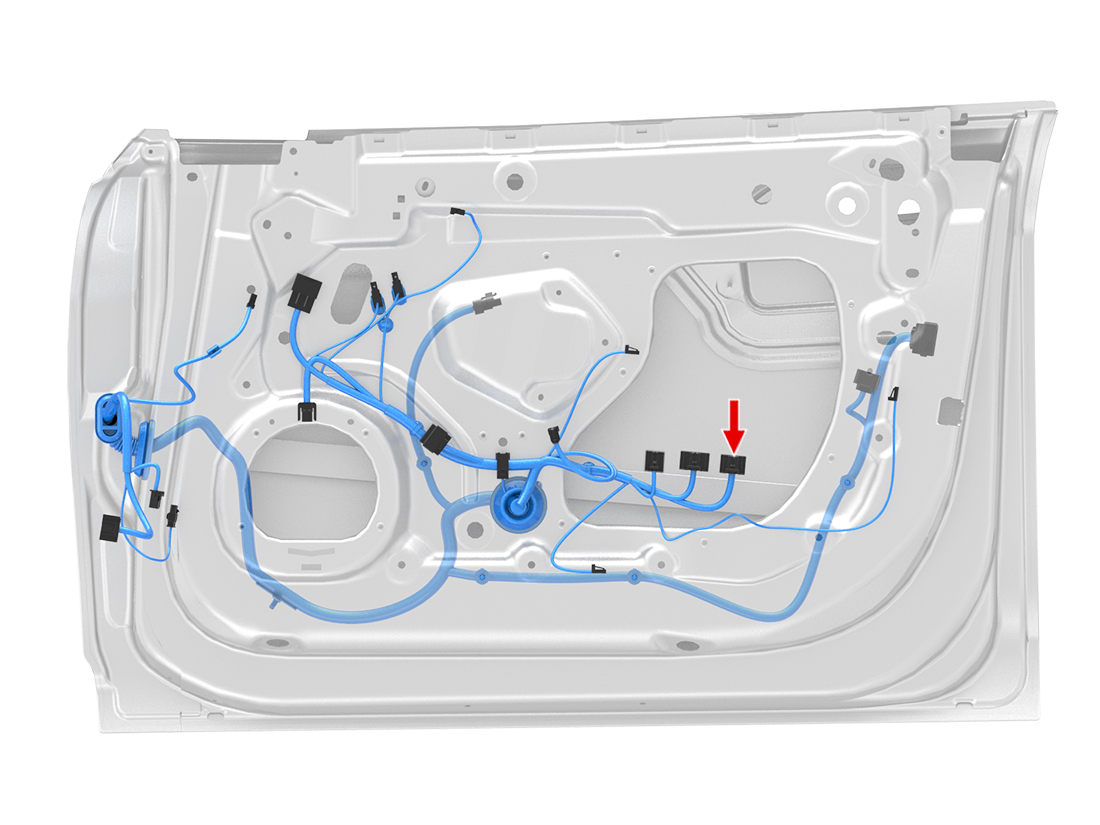

Location:
Connector Detail: jae_mx34024sf1
Gender:
Color: Gray
| Cav | Col | Gauge |
|---|---|---|
| 1 | DB/YE | 0.5 |
| 2 | VT/GY | 0.5 |
| 3 | VT/WH | 0.5 |
| 4 | VT | 0.5 |
| 5 | RD | 0.35 |
| 7 | WH/RD | 0.35 |
| 8 | RD/OG | 0.5 |
| 9 | TN/DB | 0.5 |
| 9 | TN/DB | 0.5 |
| 10 | DB/GY | 0.35 |
| 11 | DB/WH | 0.35 |
| 12 | TN | 0.35 |
| 14 | VT/LG | 0.5 |
| 15 | TN/BK | 0.5 |
| 16 | DB/LB | 0.35 |
| 18 | WH/BN | 0.35 |
| 19 | BK/GY | 0.5 |
| 20 | LG | 0.5 |
| 21 | BN/YE | 0.5 |
| 22 | BN | 0.5 |
| 23 | DB/BK | 0.35 |
| 24 | DG | 0.35 |
