X362 - s-lhd-sop2

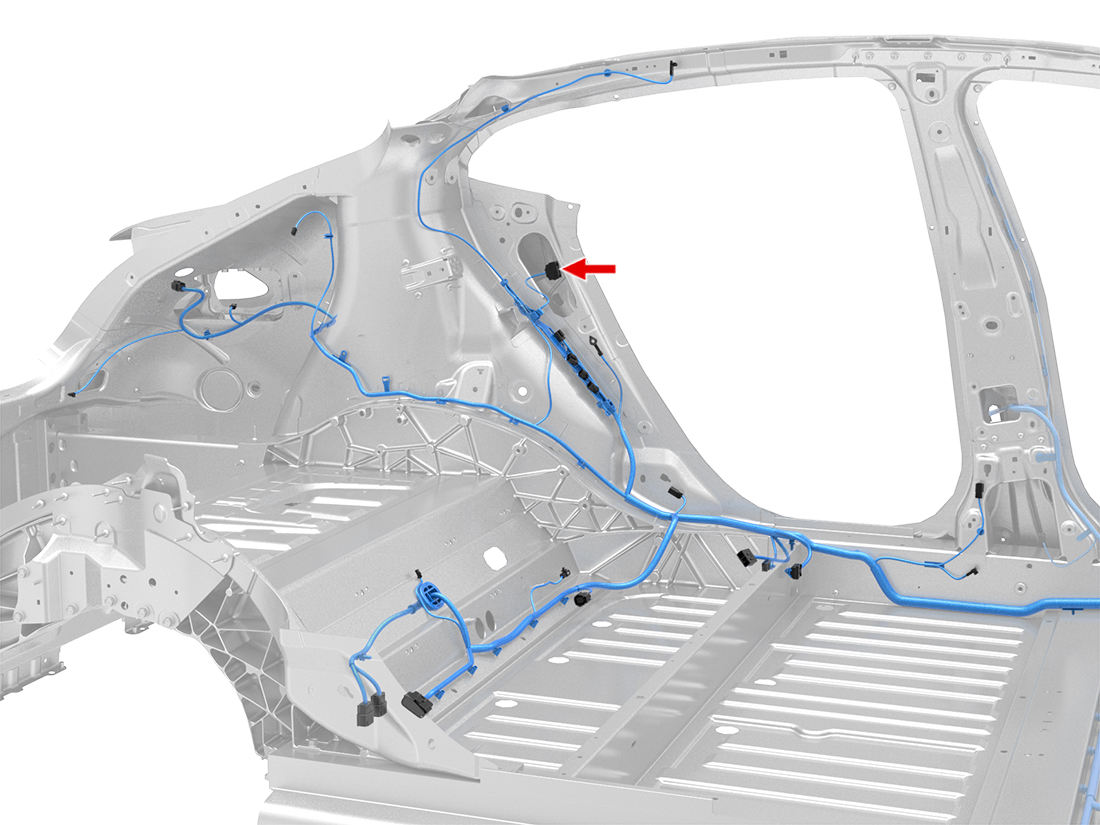

Location:
Connector Detail: amp_6-1355688-1
Gender: REC-STD
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 3 | VT/GY | 0.5 |
| 4 | BN | 0.5 |
| 6 | VT | 0.5 |
| 7 | DB/LB | 0.35 |
| 8 | BK | 0.5 |
2012-2020 Model S Connector Reference
