X553 - s-lhd-sop2

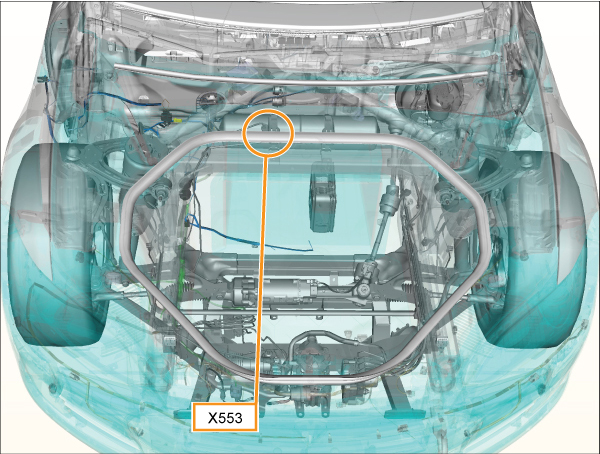

Location:

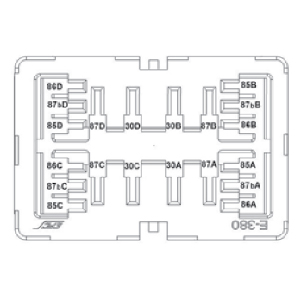

Connector Detail: aees_e380
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 85A | BK | 0.35 |
| 86A | RD | 0.35 |
| 30A | WH/BK | 1 |
| 87A | RD/WH | 1 |
| 85C | BK | 0.35 |
| 86C | PK/OG | 0.35 |
| 30C | BN/WH | 2 |
| 87C | BN/OG | 2 |
2012-2020 Model S Connector Reference
