X554 - s-lhd-sop2

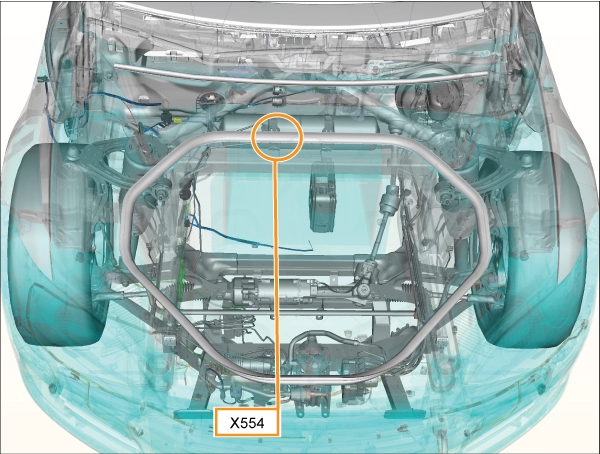

Location:
Connector Detail: aees_e431
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| A1 | RD/DB | 5 |
| A2 | RD/DB | 5 |
| A3 | RD/GY | 5 |
| B1 | RD/WH | 2 |
| B2 | BN/LB | 2 |
| B3 | OG/WH | 3 |
2012-2020 Model S Connector Reference
